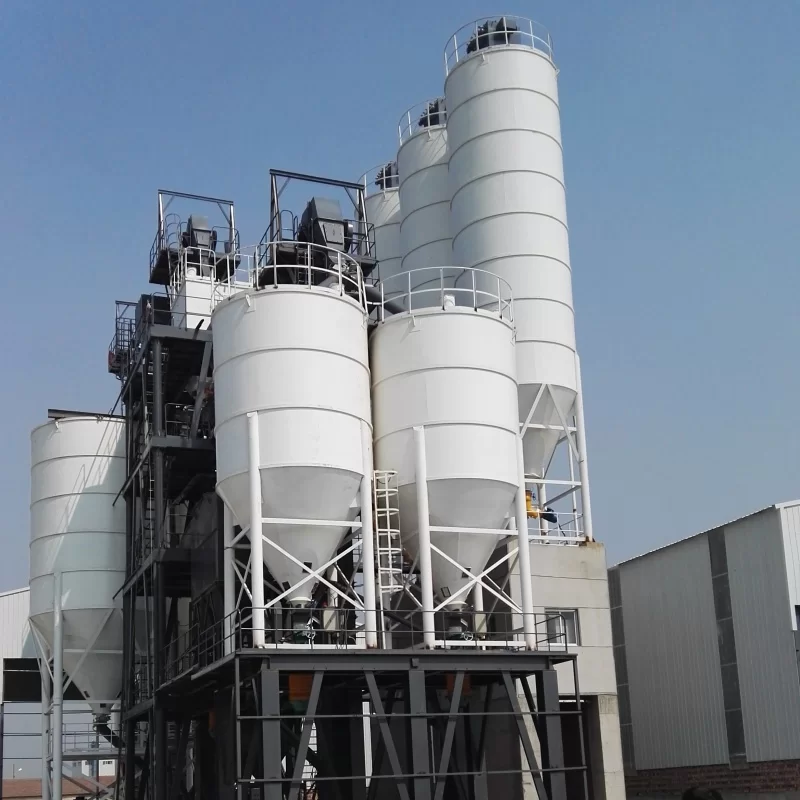

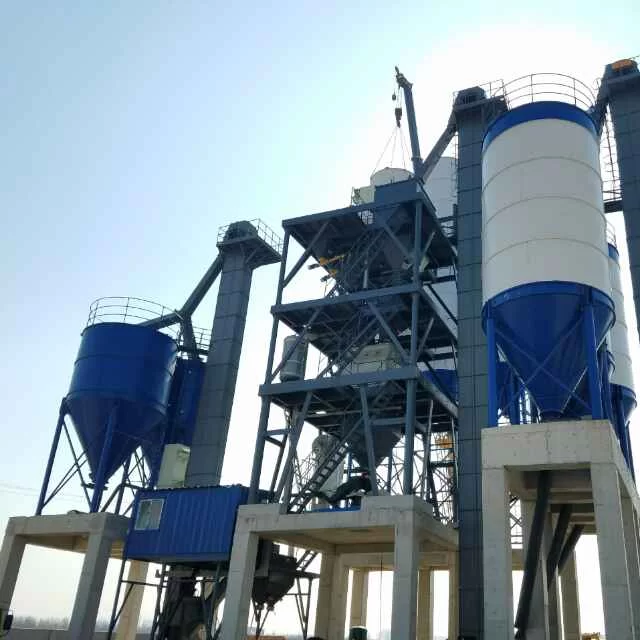

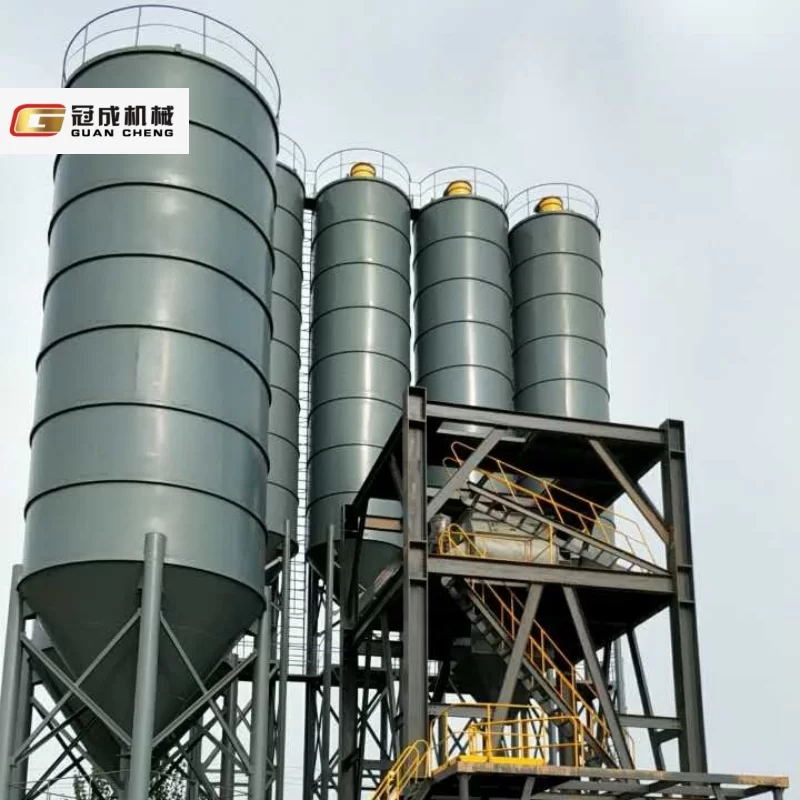

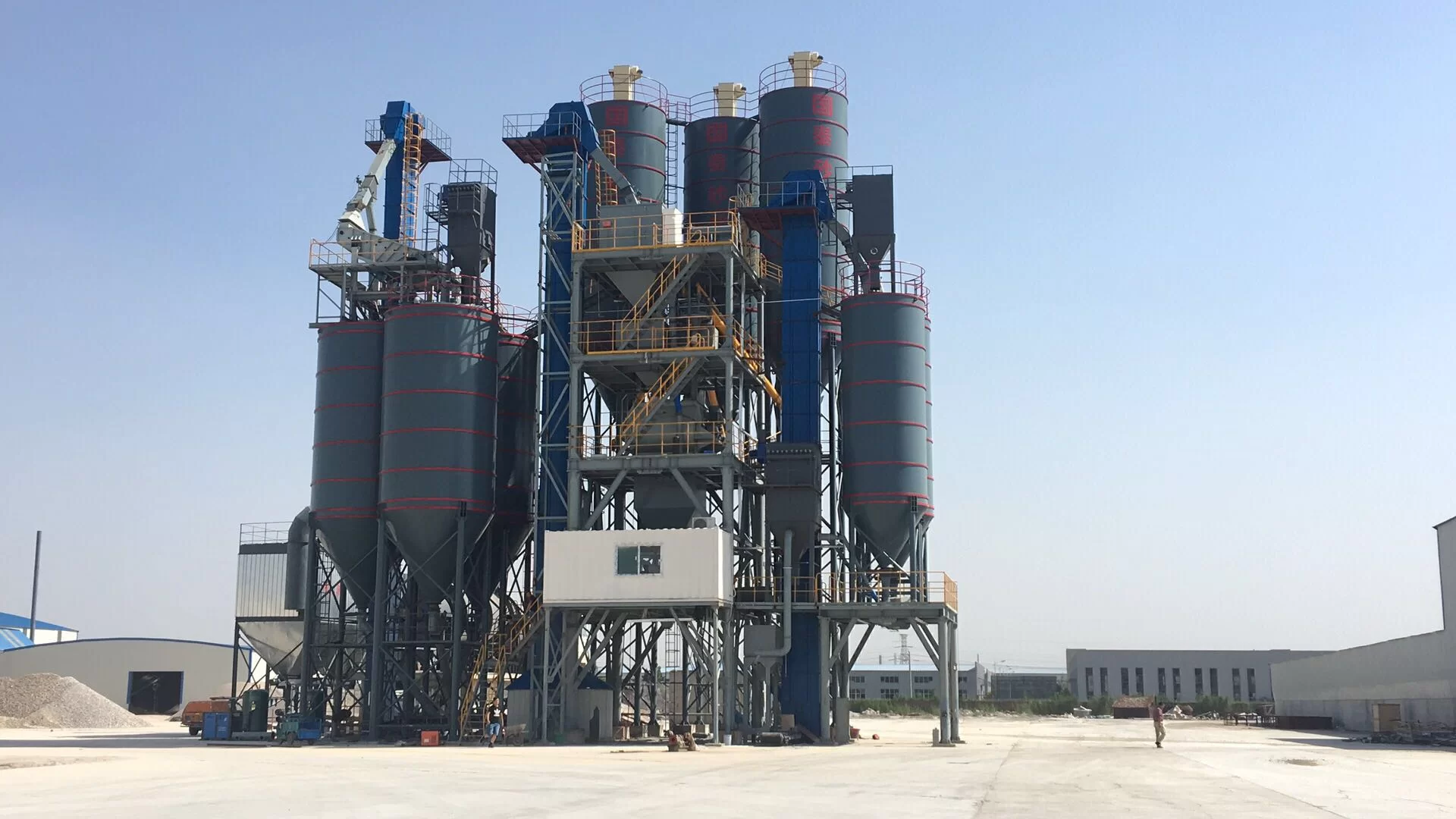

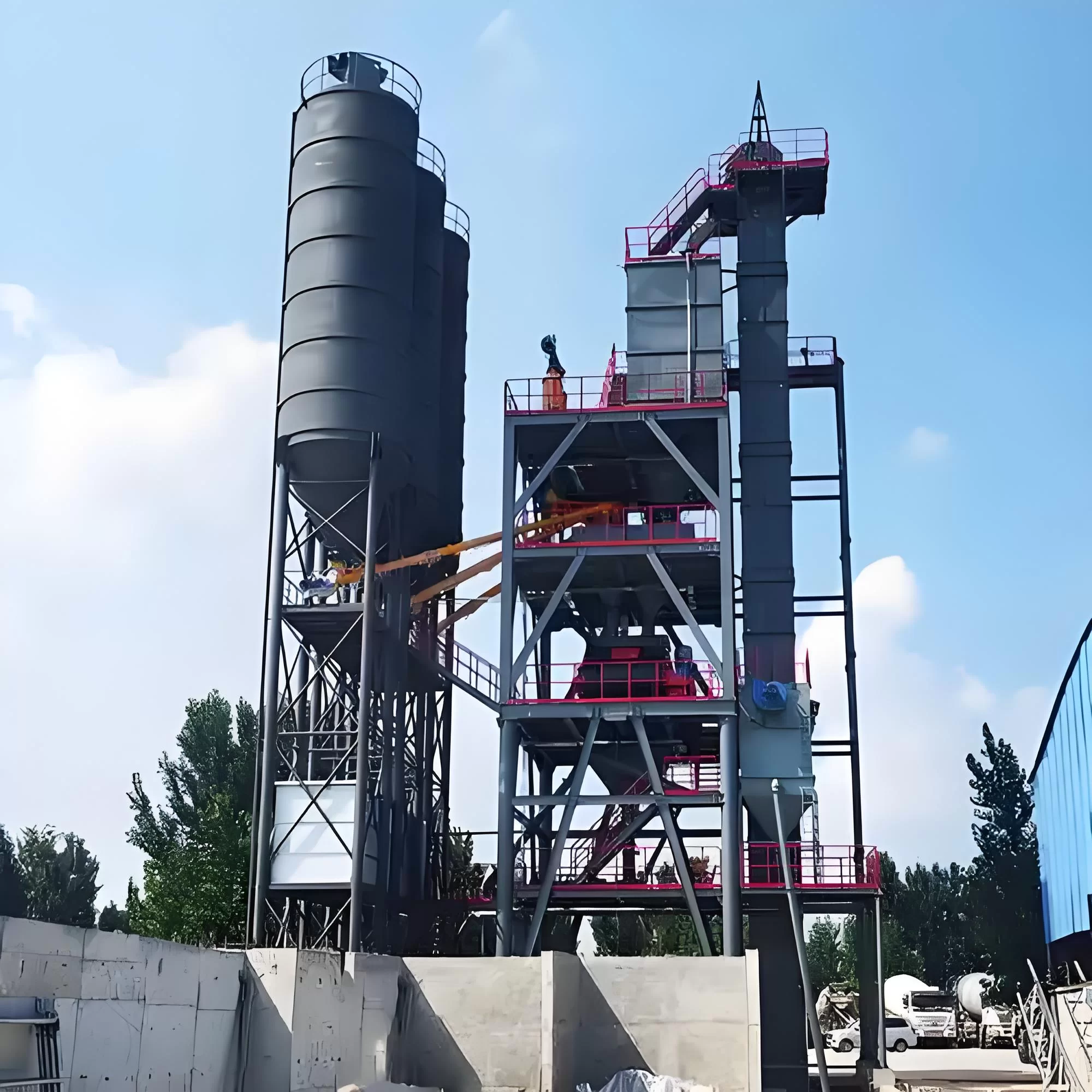

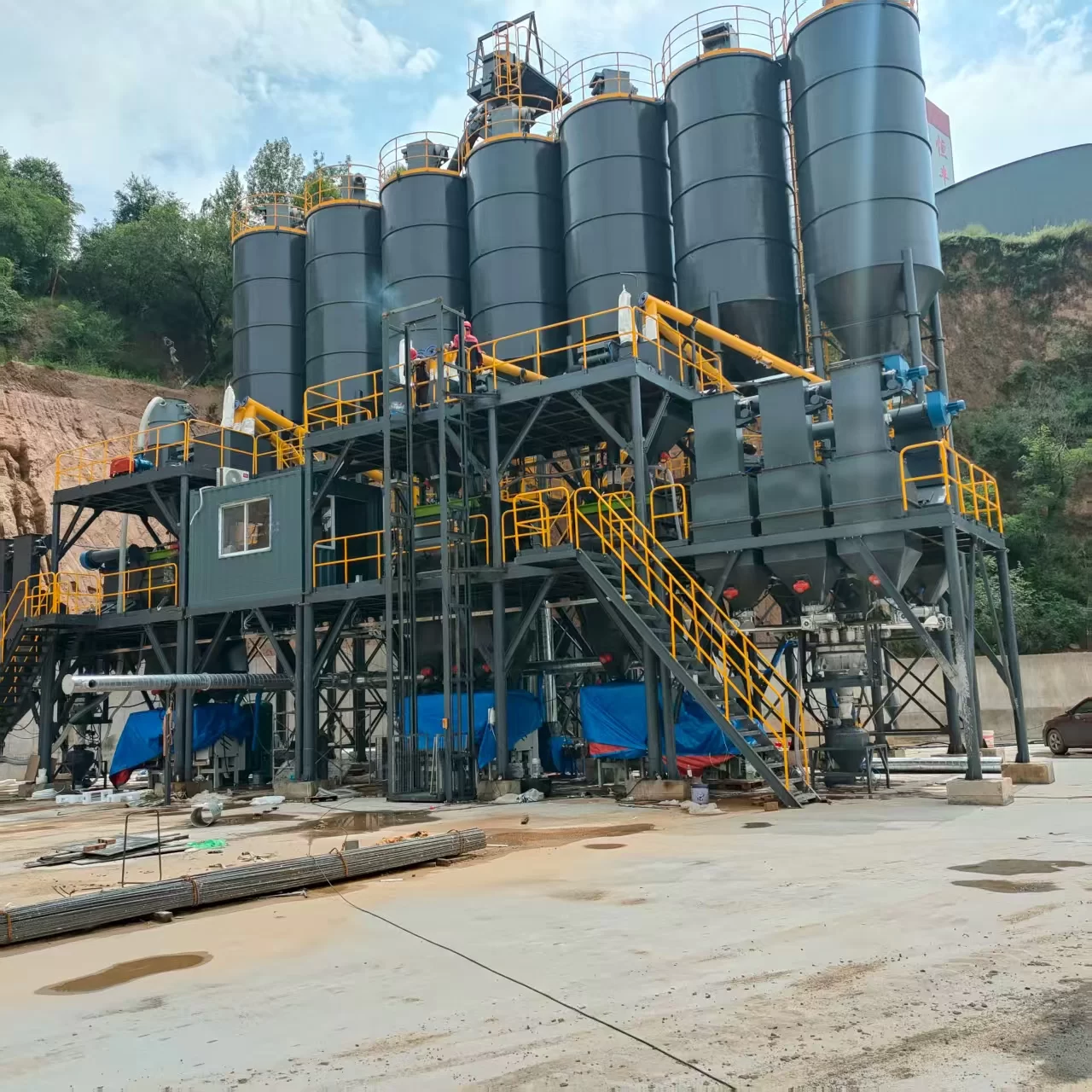

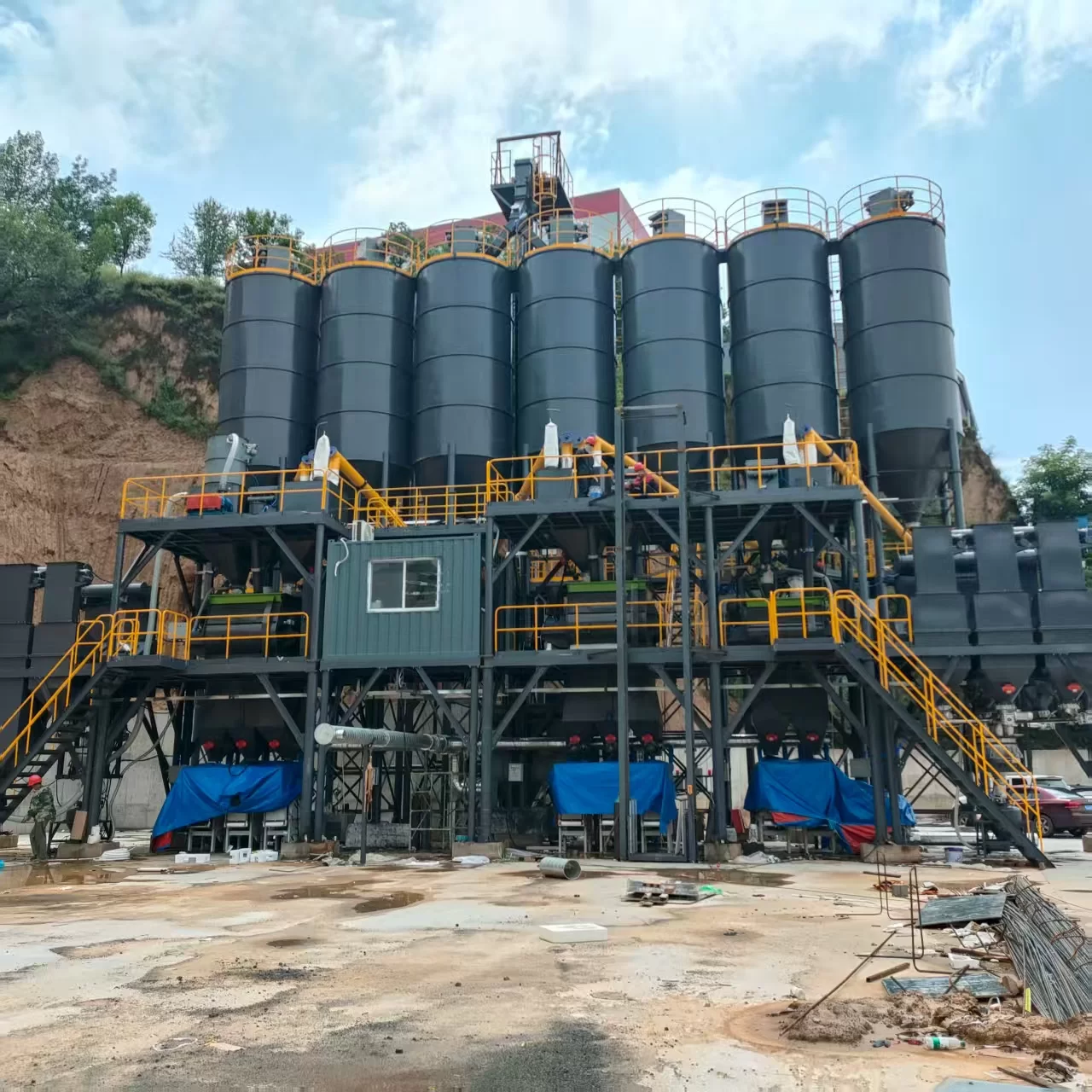

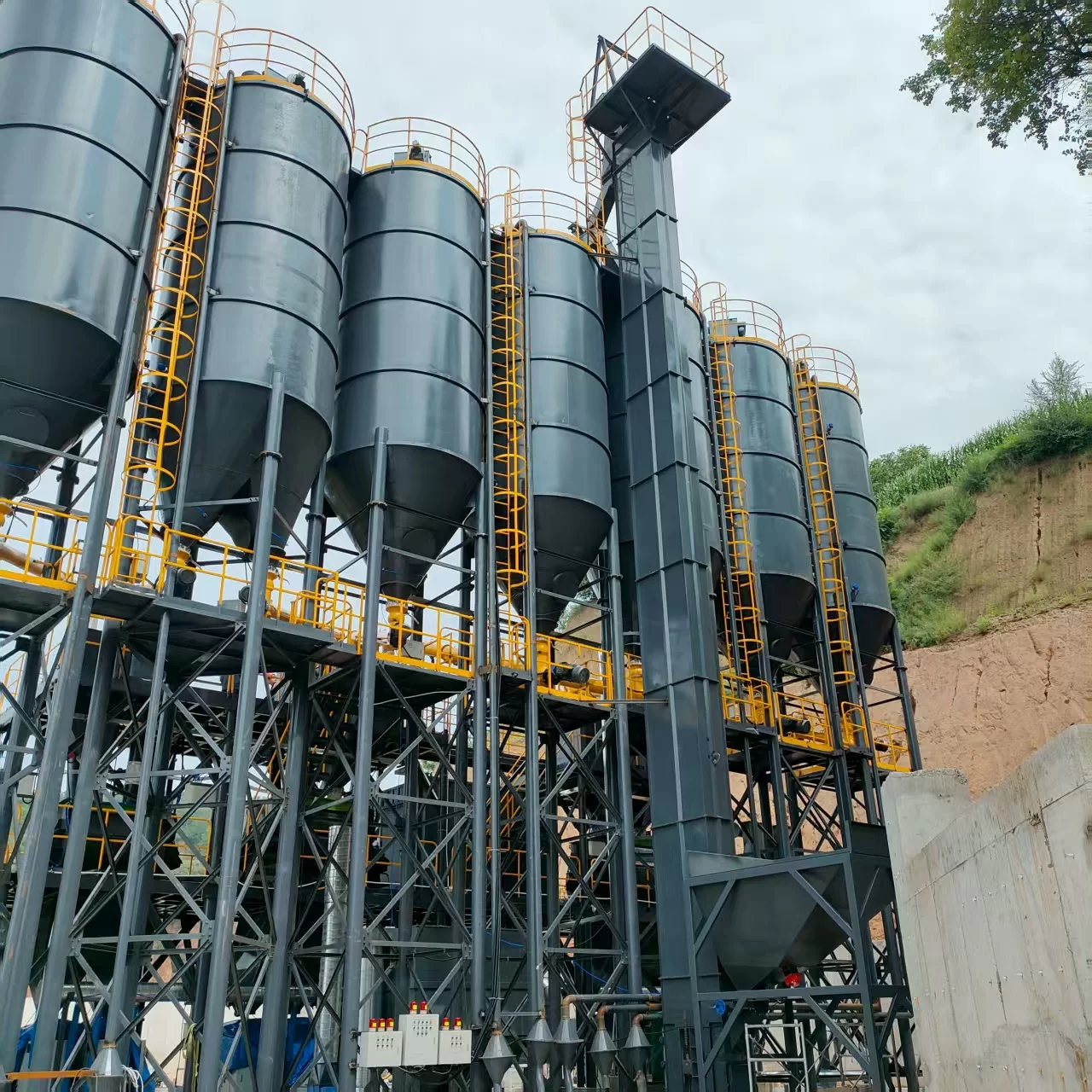

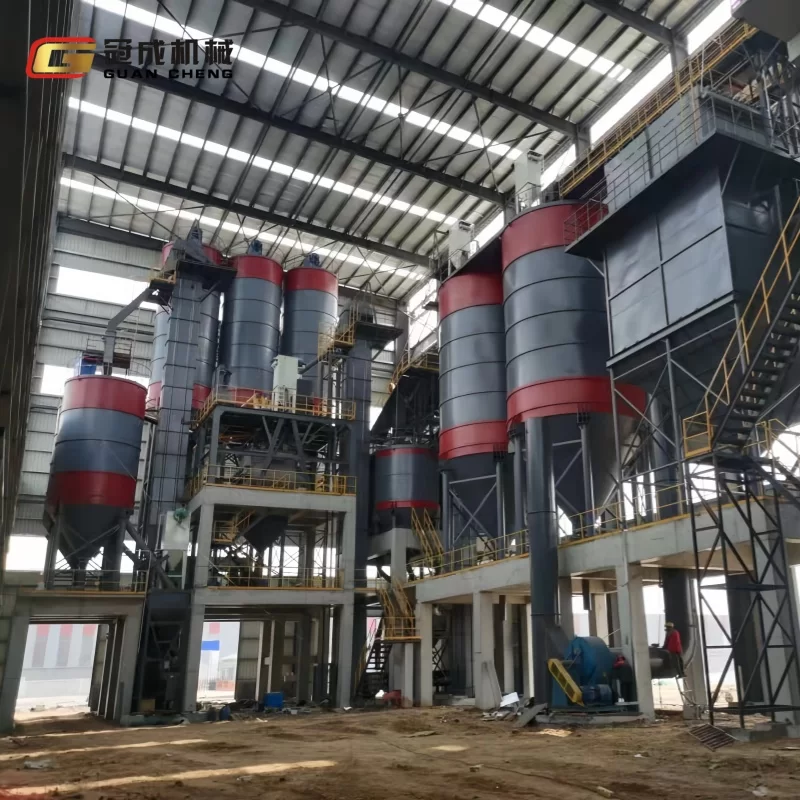

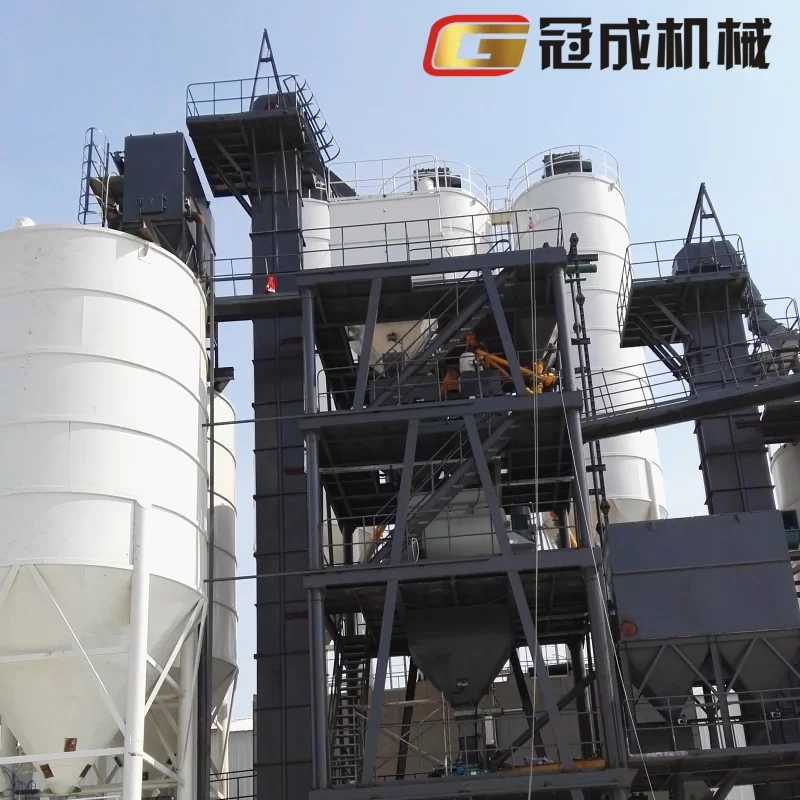

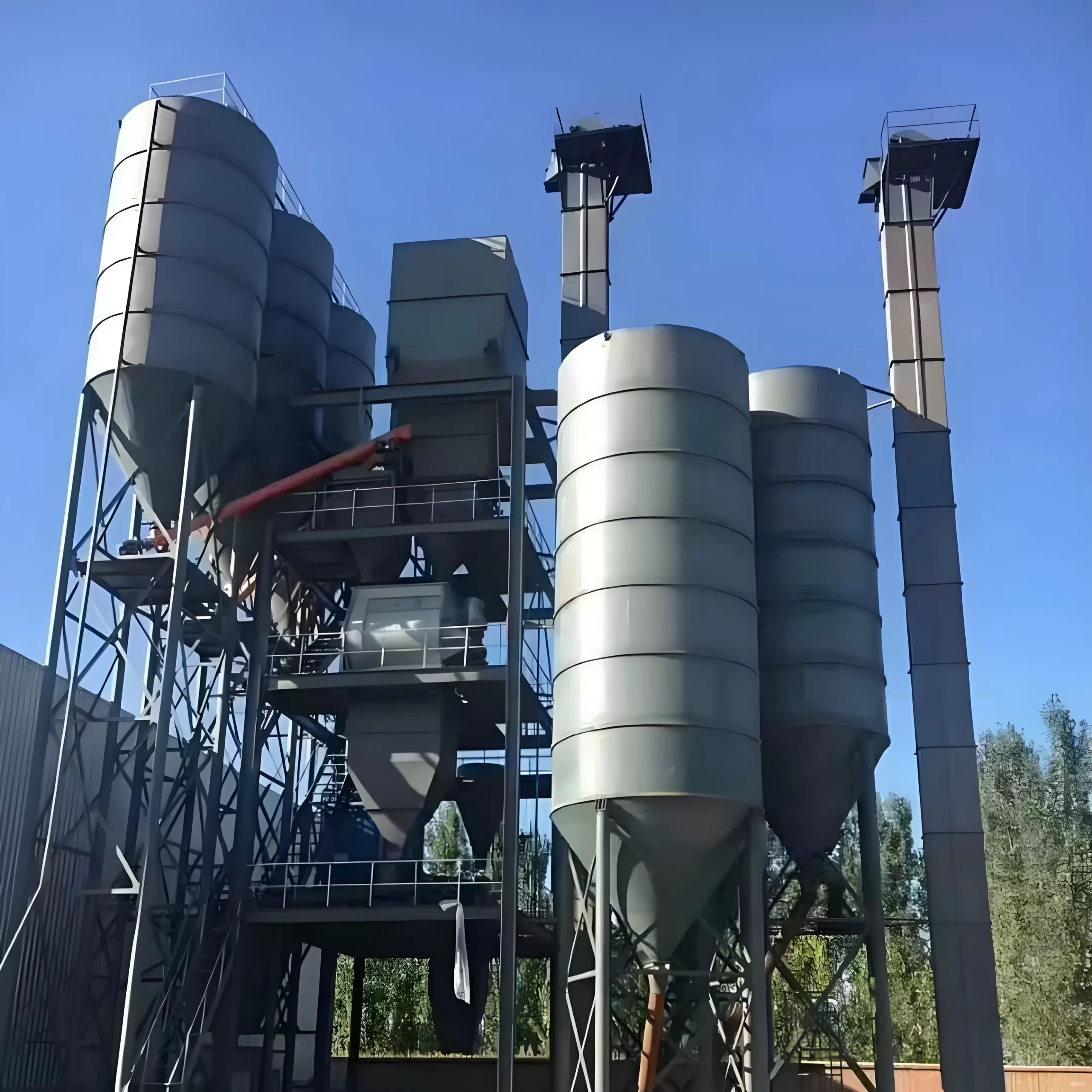

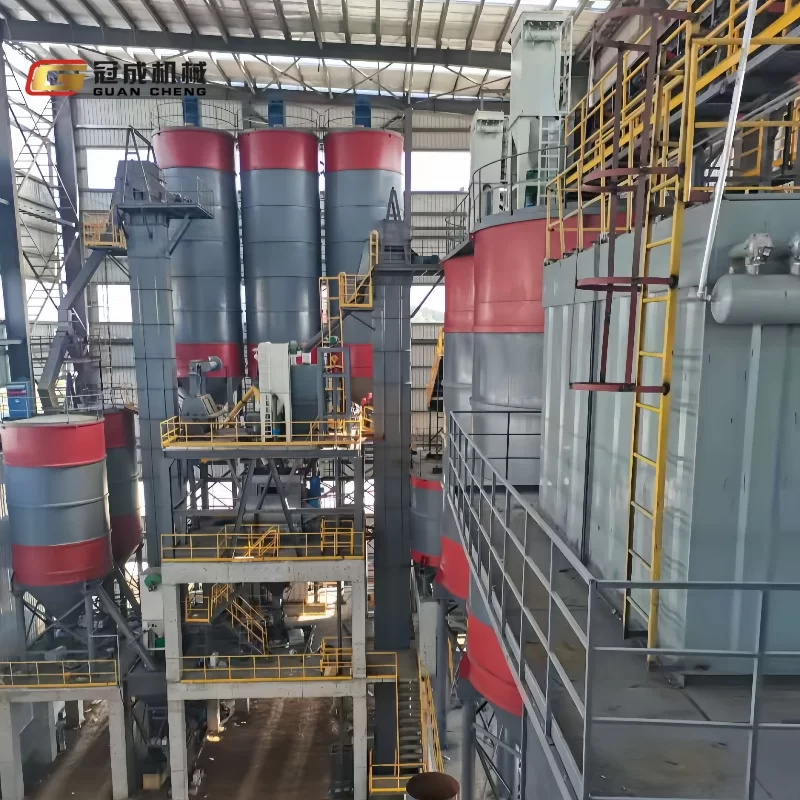

Standard Dry Powder Slurry Station
A standardized equipment for automatic pulping of dry powder materials, with features such as precise measurement, uniform mixing, and stable operation, suitable for various industrial pulping application scenarios.
-
Product Information
Technical Parameter
Item Unit GCSZ40 GCSZ60 GCSZ80 Theoretical Productivity T/H 40 60 80 Mixer Model WZ Series WZ-6 WZ-10 WZ-13 Mixer Motor Power KW 45 55 55 Single Batch Mixing Capacity m³ 6 10 12 Powder Silo Volume m³ 3×100 3×125 3×125 Sand Silo Volume m³ 4×100 4×100 4×100 Additive Silo Volume m³ 2×2 2×2 2×2 Finished Product Silo Volume m³ 2×70 2×70 2×70 Sand Measurement Range & Accuracy kg 3000±2% 5000±2% 8000±2% Powder Measurement Range & Accuracy kg 1000±1% 2000±1% 3000±1% Additive Measurement Range & Accuracy kg 30±20g 30±20g 50±20g Installed Capacity KW ≈180 ≈190 ≈200 Floor Area m ≈53×17 ≈55×17 ≈55×17 It is a complete pulp making system that integrates dry powder feeding, metering control, mixing and dispersion, and slurry transportation. The equipment uses precise dry powder feeding devices and efficient mixing structures to quickly wet and fully disperse dry powder materials when entering liquid media, effectively avoiding agglomeration, floating, and sedimentation phenomena, ensuring uniform slurry concentration and stable performance.
The pulp station adopts modular design, compact structure, small footprint, easy installation and maintenance, and can achieve continuous or intermittent operation according to process requirements. The system is suitable for various dry powder materials such as lime powder, activated carbon, PAC, PAM, etc., and is widely used in water treatment, environmental engineering, chemical and building materials industries. With high automation, operational reliability, and low operating costs, the Standard Dry Powder Slurry Station can effectively improve pulp making efficiency and meet the modern industrial demand for stable pulp making processes.
