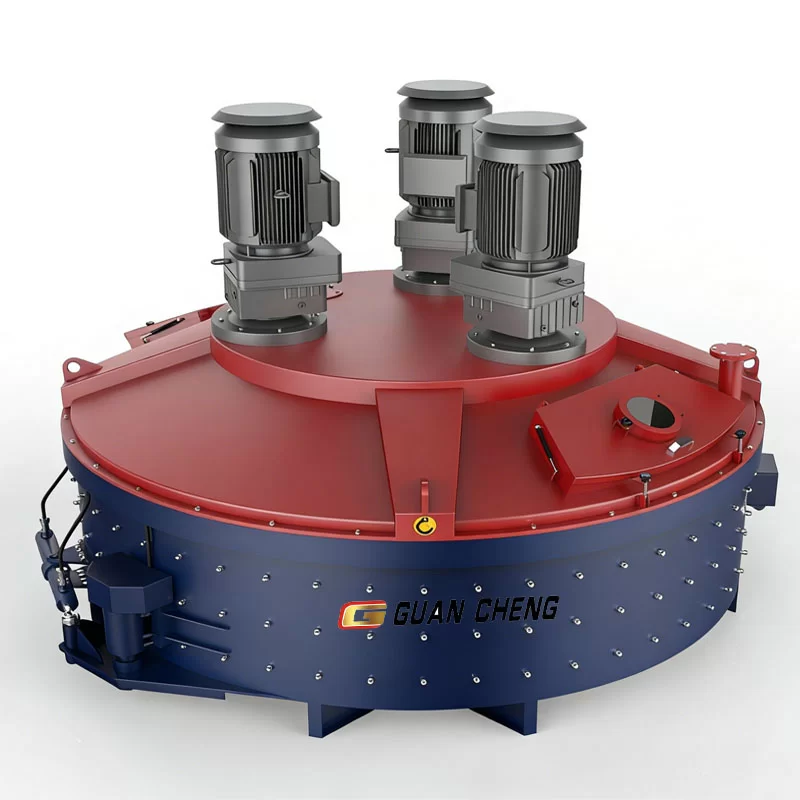

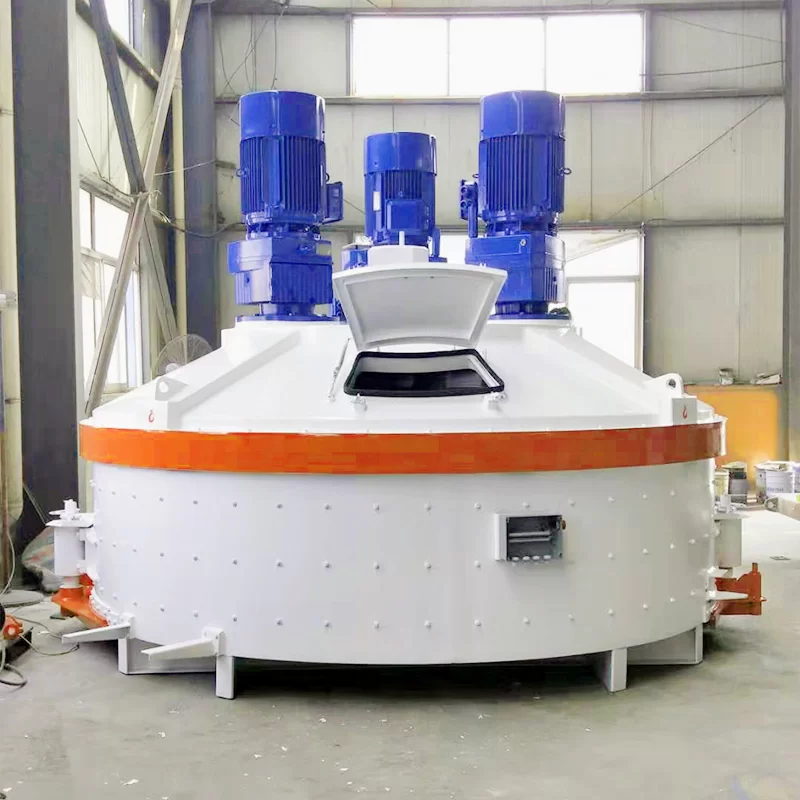

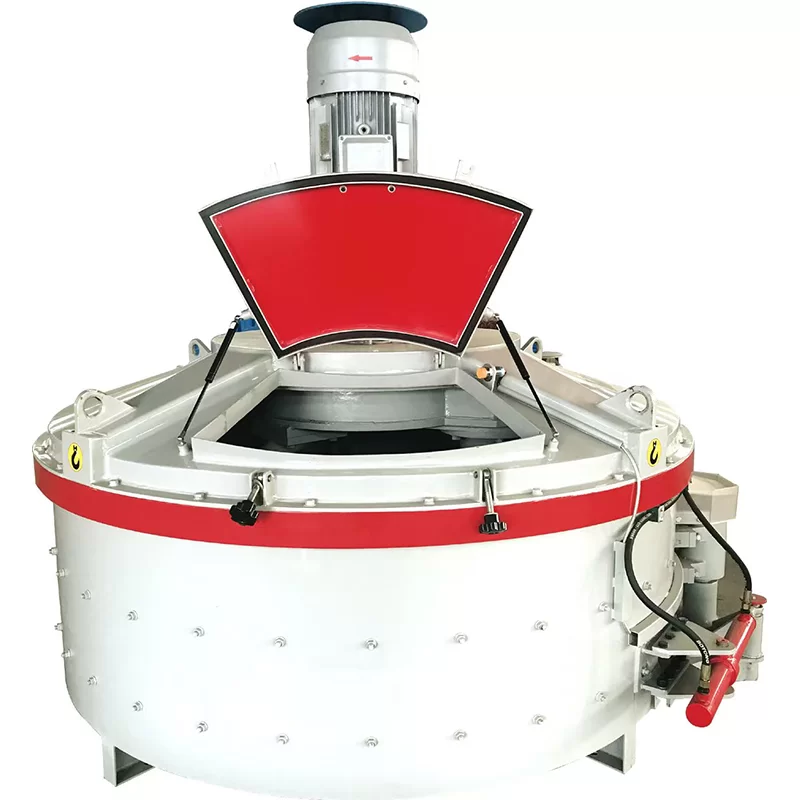

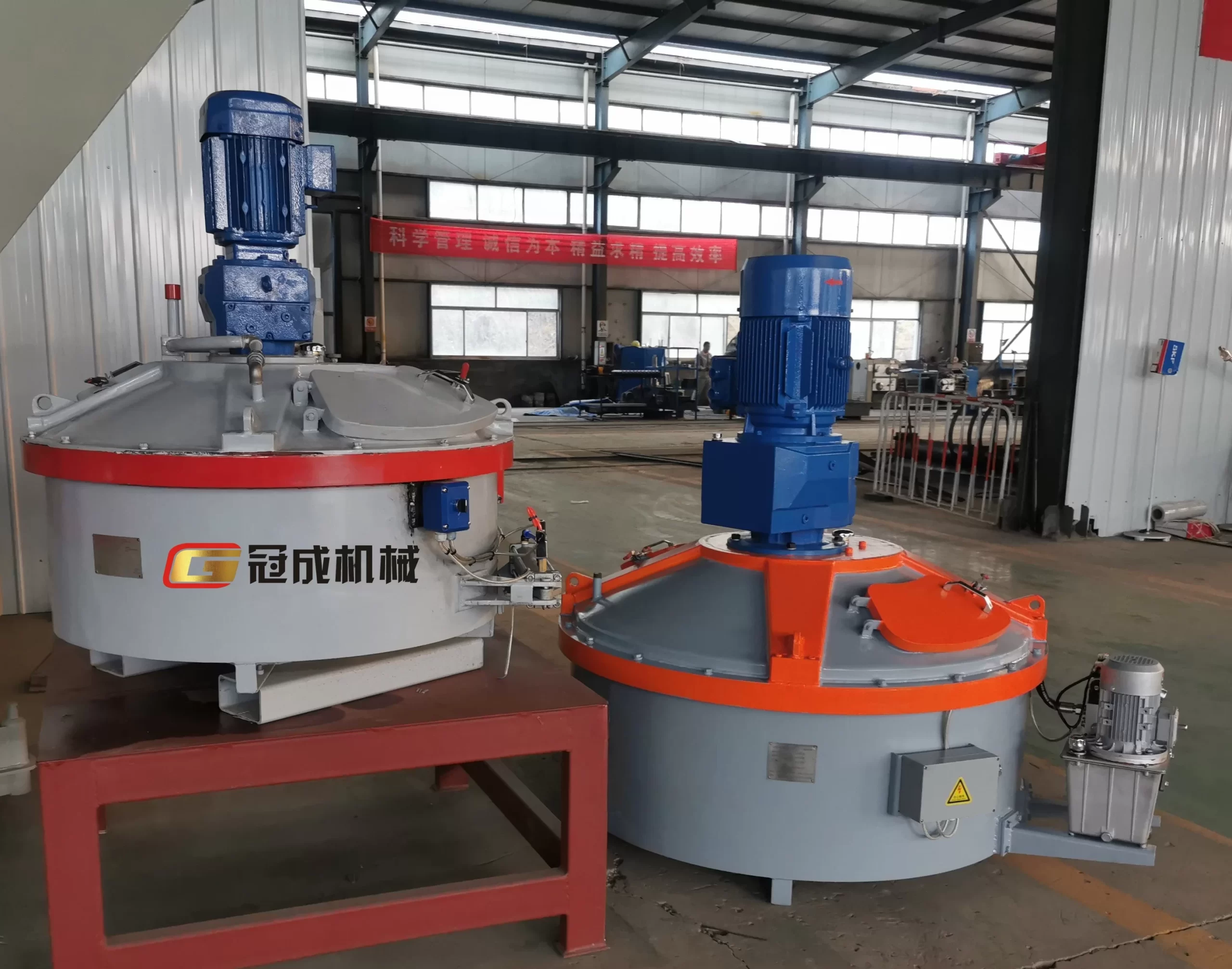

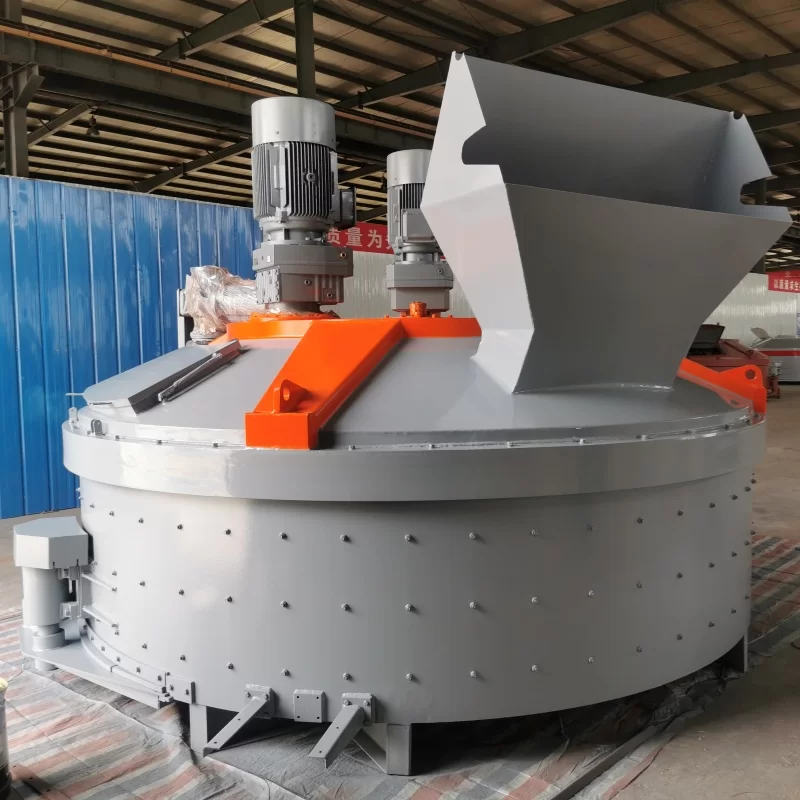

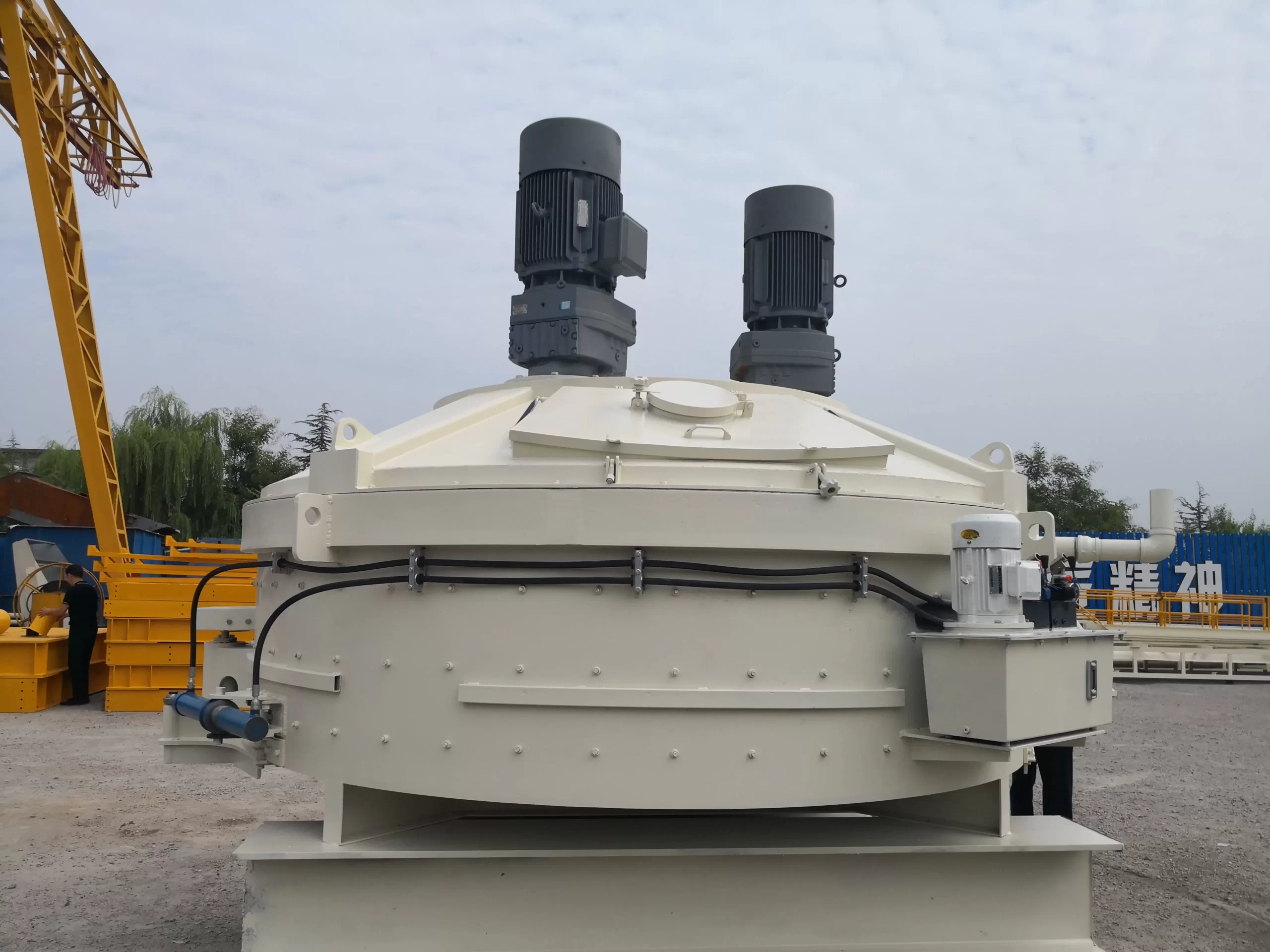

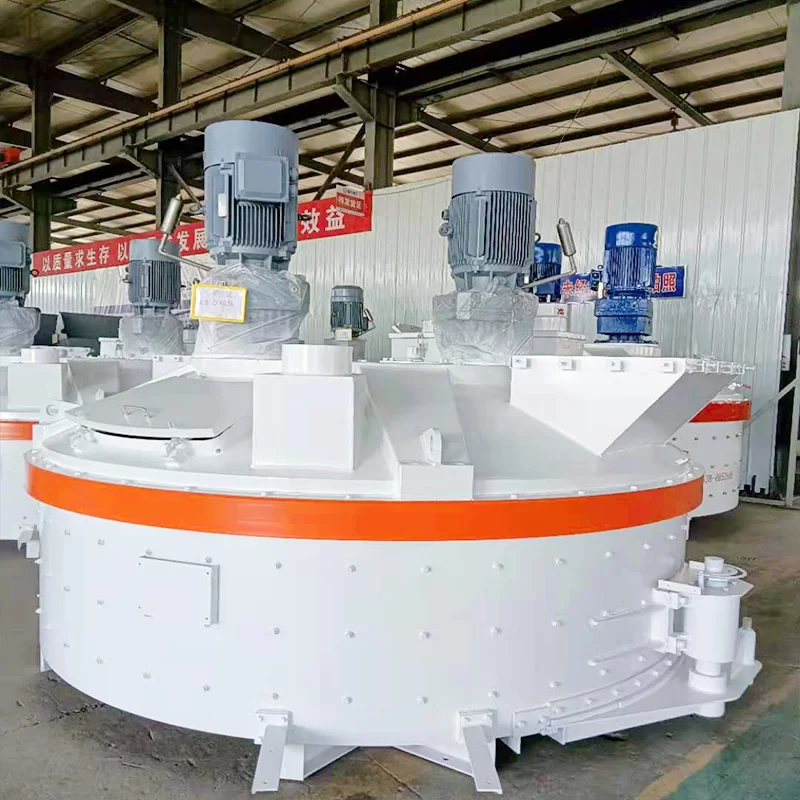

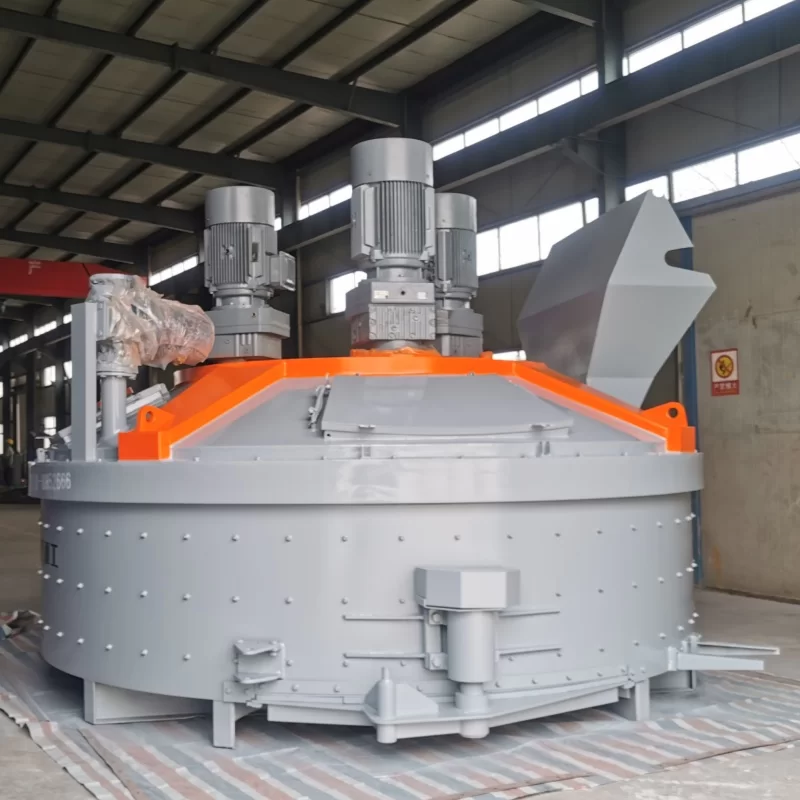

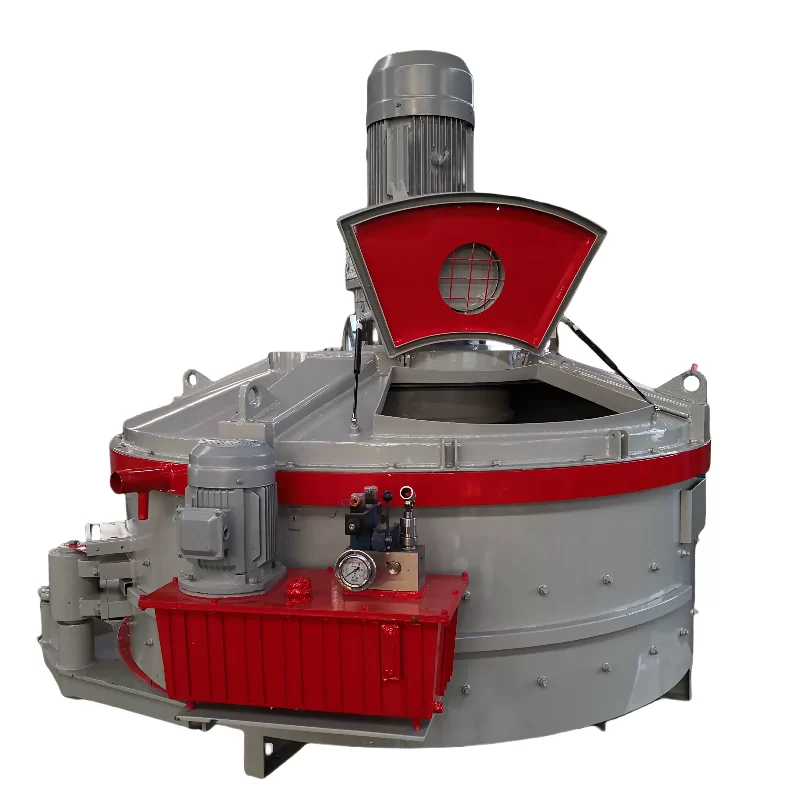

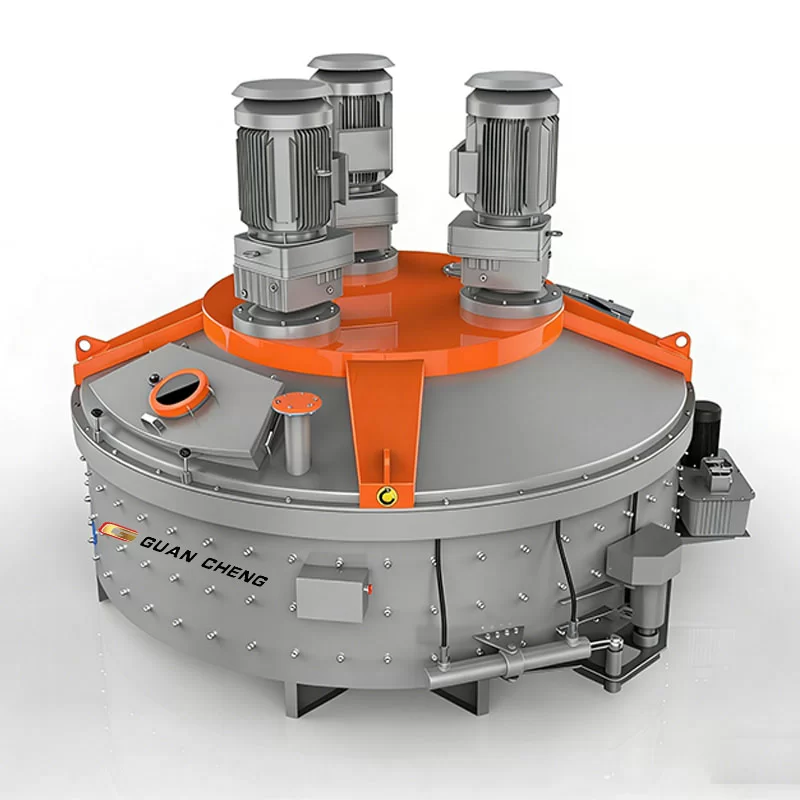

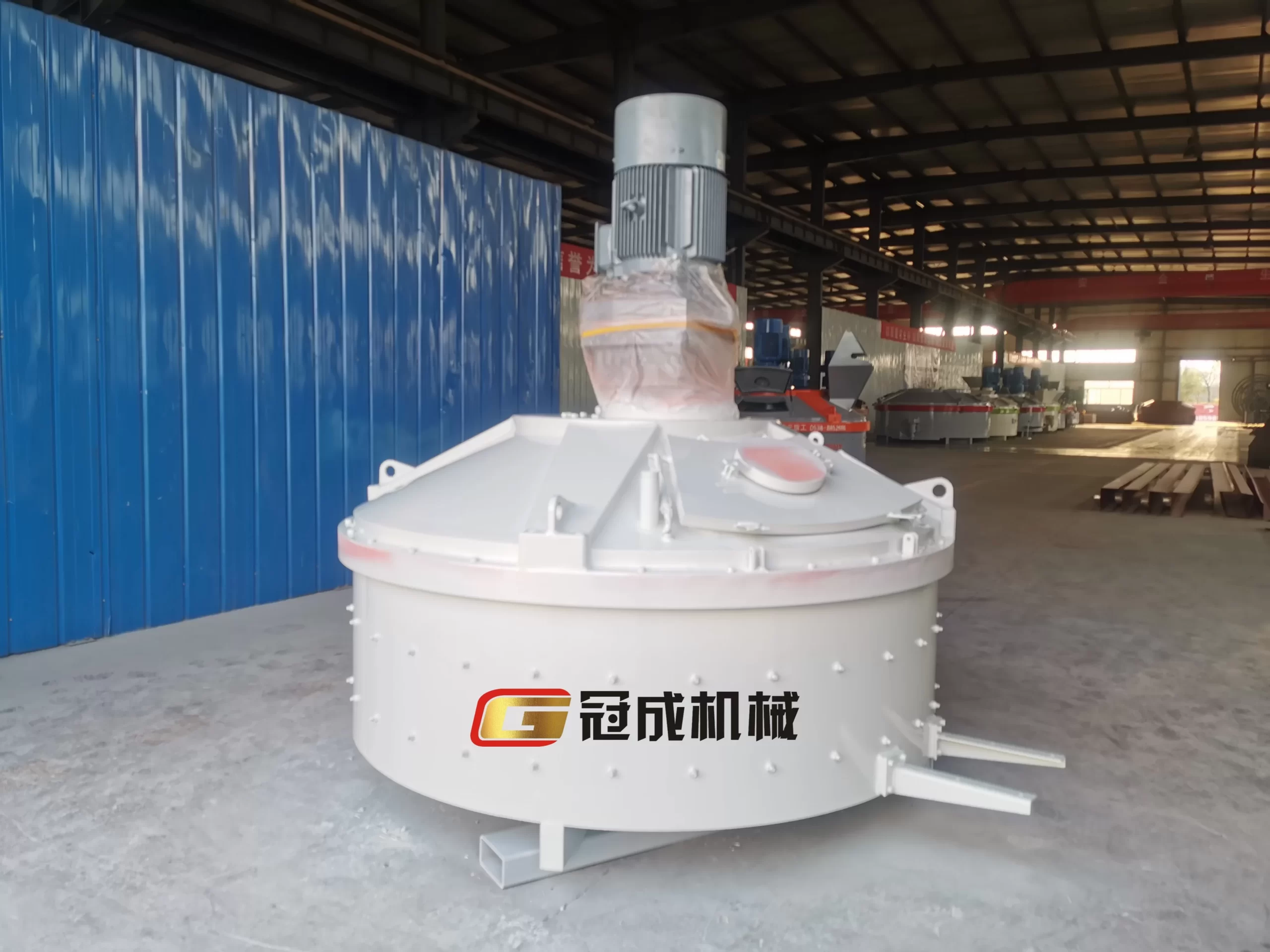

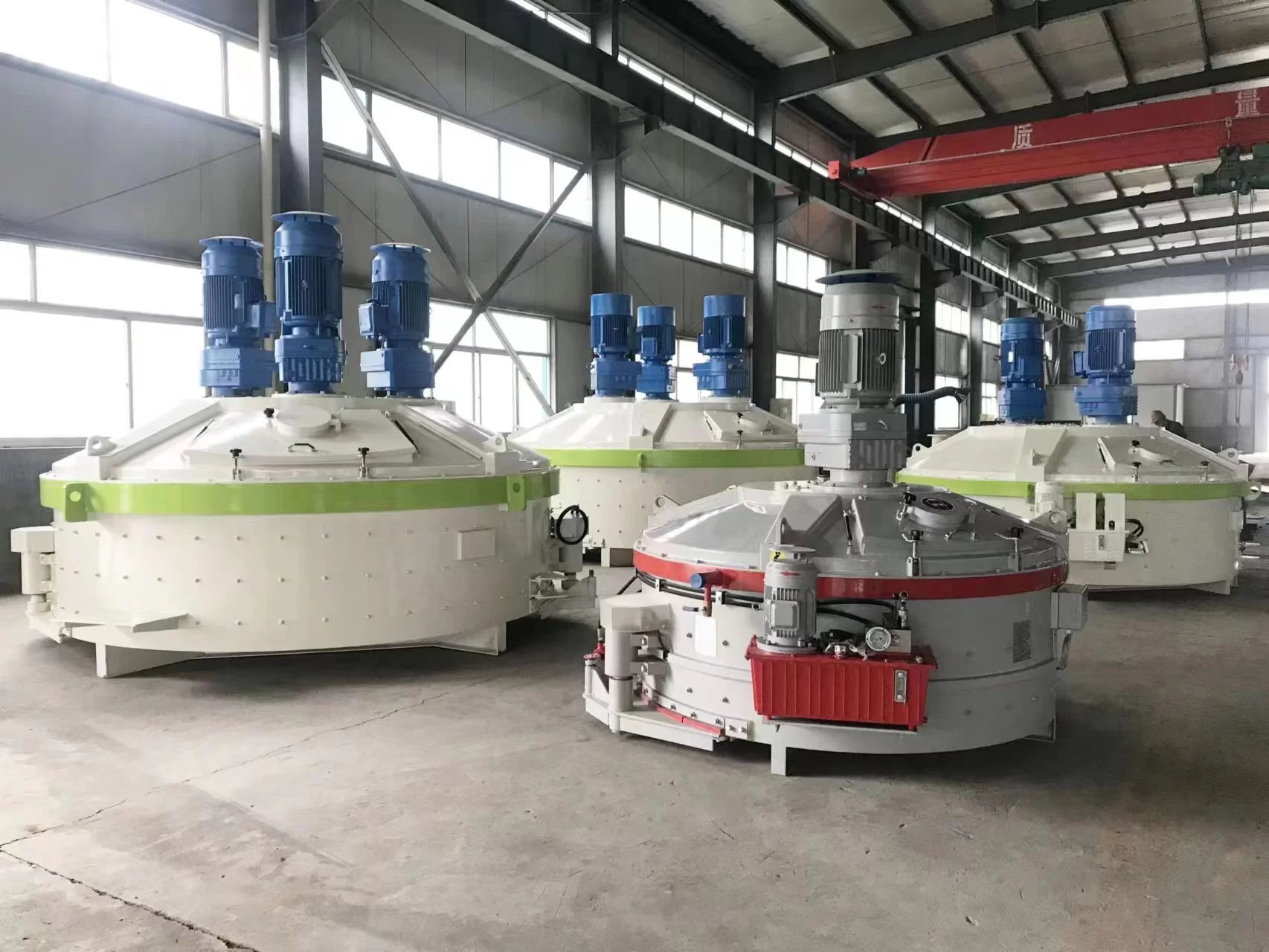

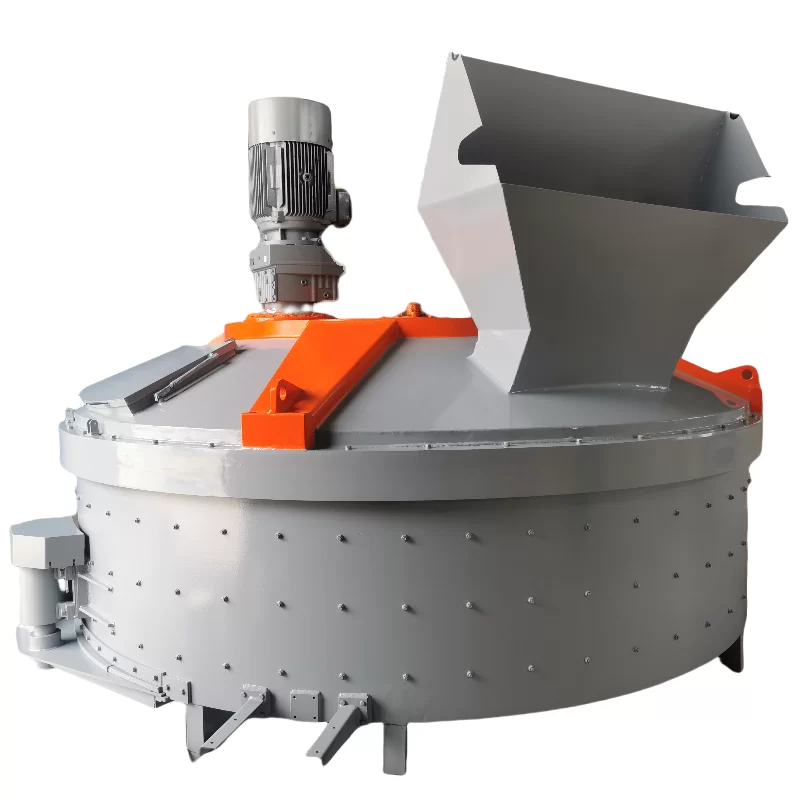

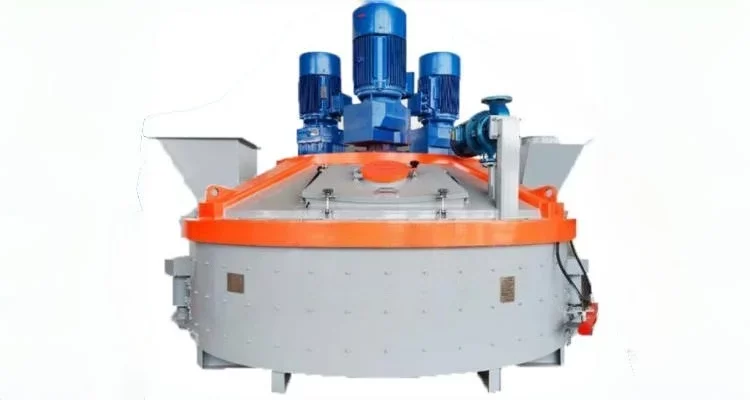

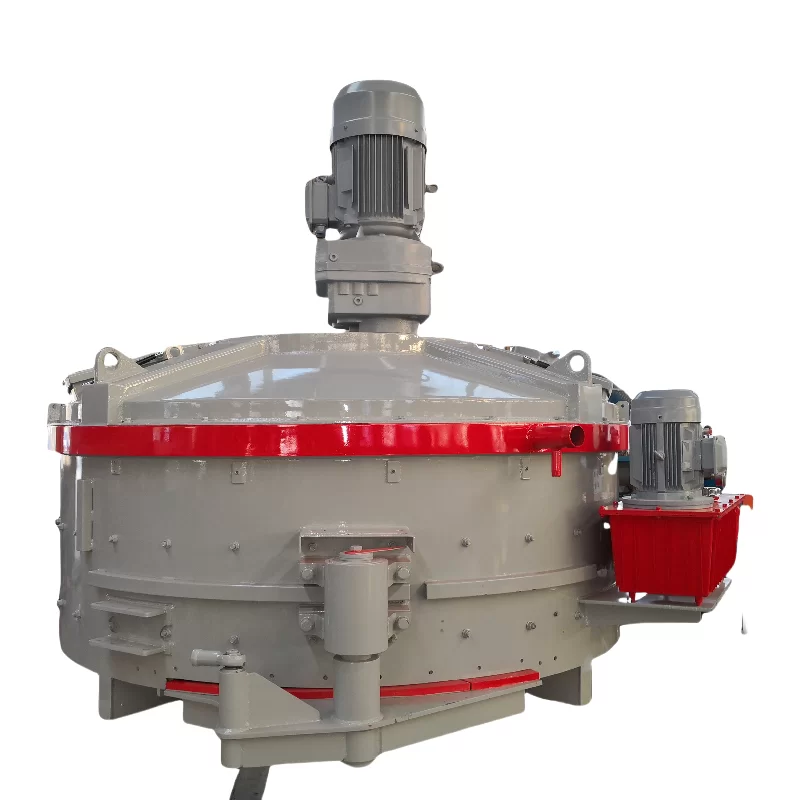

Vertical Shaft Planetary Mixer

Name: Vertical Shaft Planetary Mixer
Availability: InStock
Rating: 4.5 (89 reviews)

Our company's vertical shaft planetary mixer has obtained multiple national patents. It features fast mixing speed, uniform mixing effect, and no mixing dead ends. It is suitable for high-grade, dry-hard, semi-dry-hard and plastic concrete, as well as materials in industrial, environmental protection, ceramic, chemical and other industries. It can be widely used in the material mixing of precast component PC production lines, pipe pile factory production lines, light wall panel production lines, flower brick and insulation brick production lines, ceramic production lines, subway segments, underground pipe gallery culverts, sleeper and other production lines.

Product Information

Technical Parameter

Vertical Shaft Planetary Mixer – Parameter Sheet
Model	SYN50	SYN100	SYN200	SYN250	SYN350	SYN500	SYN750	SYN1000	SYN1500	SYN2000	SYN3000
L	50	100	200	250	350	500	750	1000	1500	2000	3000
L	75	150	300	375	525	750	1125	1500	2250	3000	4500
KW	2.2	4	7.5	11	15	18.5	30	37	2*30	3*30	3*37(45)
KW	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic	2.2	3	3	3
qty	1	1*2	1*2	1*2	1*2	1*2	1*3	2*2	2*2	3*2	3*2
qty	1	1	1	1	1	1	1	1	1	1	1
qty	1	1	1	1	1	1	1	1	1	2	2
kg	440	561	1200	1500	1800	2200	3600	5800	7200	9500	12500
SIZE:mm	102511121148	123812821057	138614501702	158017751782	168618861895	200421892089	229625082394	251627282426	290633202463	321634202608	353039222794

Performance Features

1.Intense mixing movement, short mixing cycle and high efficiency.

2.The mixing arm performs planetary motion. When the vertical shaft rotates, it exerts composite actions such as shearing, extruding, kneading and turning on the materials for forced mixing, resulting in uniform mixture and high quality.

3.During the mixing process, the mixing arm performs both rotation and revolution. The overlapping operation trajectories intersect complexly, without any mixing dead ends or low-efficiency mixing areas.

4.There is no direct contact between concrete and the transmission part, so there is no wear and sealing problem at the main shaft end, completely solving the problem of slurry leakage.

5.The motor and reducer are externally installed, facilitating maintenance, upkeep and cleaning.

6.Flexible discharge position with multiple discharge doors available; fast discharge speed to avoid material sticking and accumulation.

7.Multiple speed transmission system configurations (configuration changes only involve adjustments to the reducer ratio and model, with consistent external interface dimensions) to flexibly adapt to different materials and working conditions.
