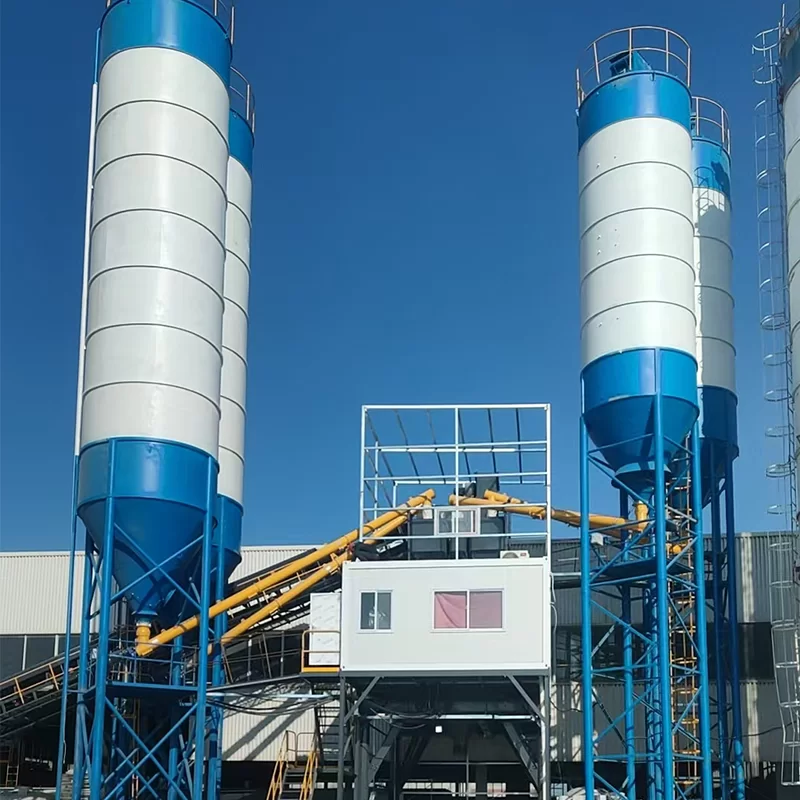

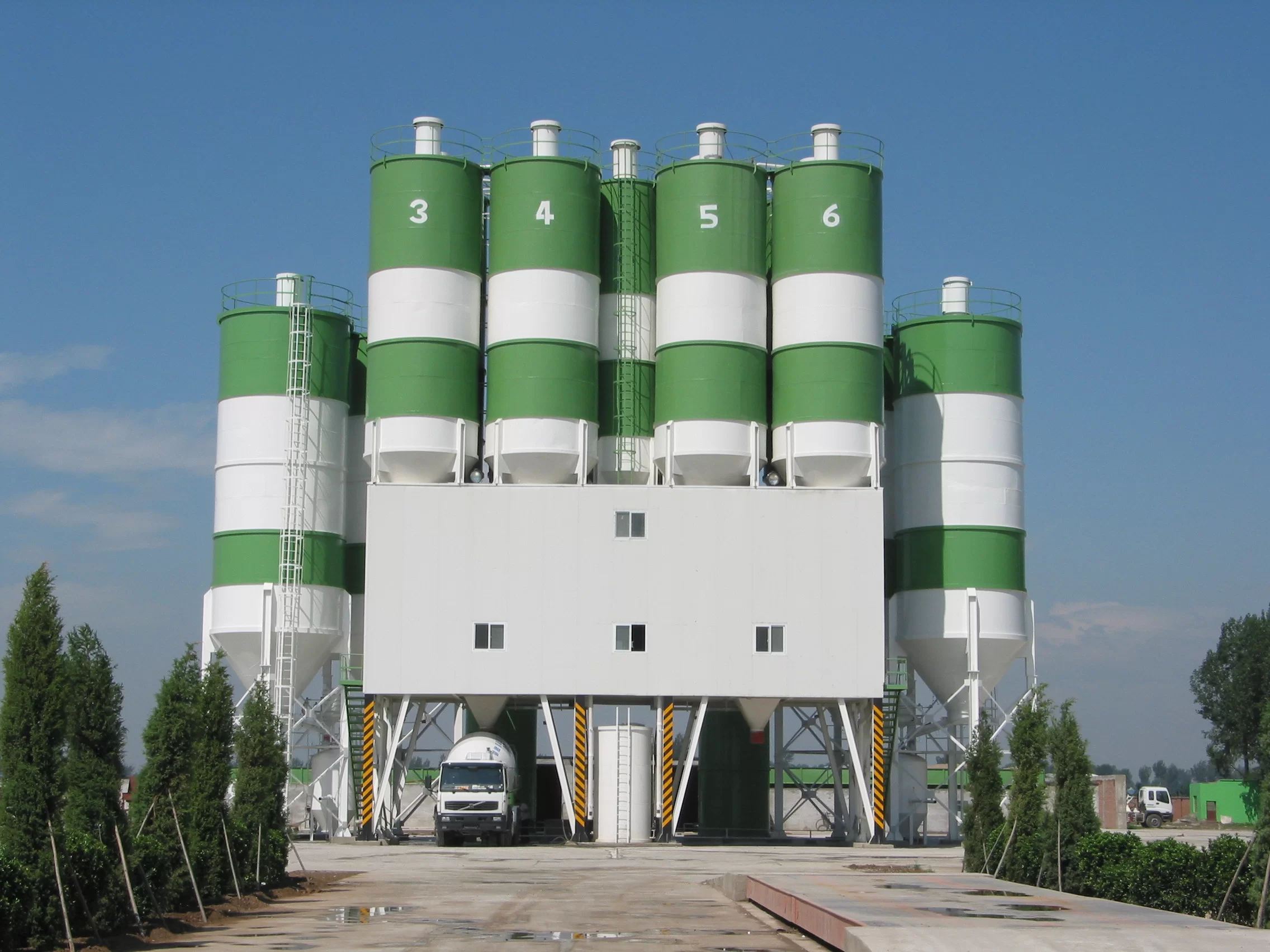

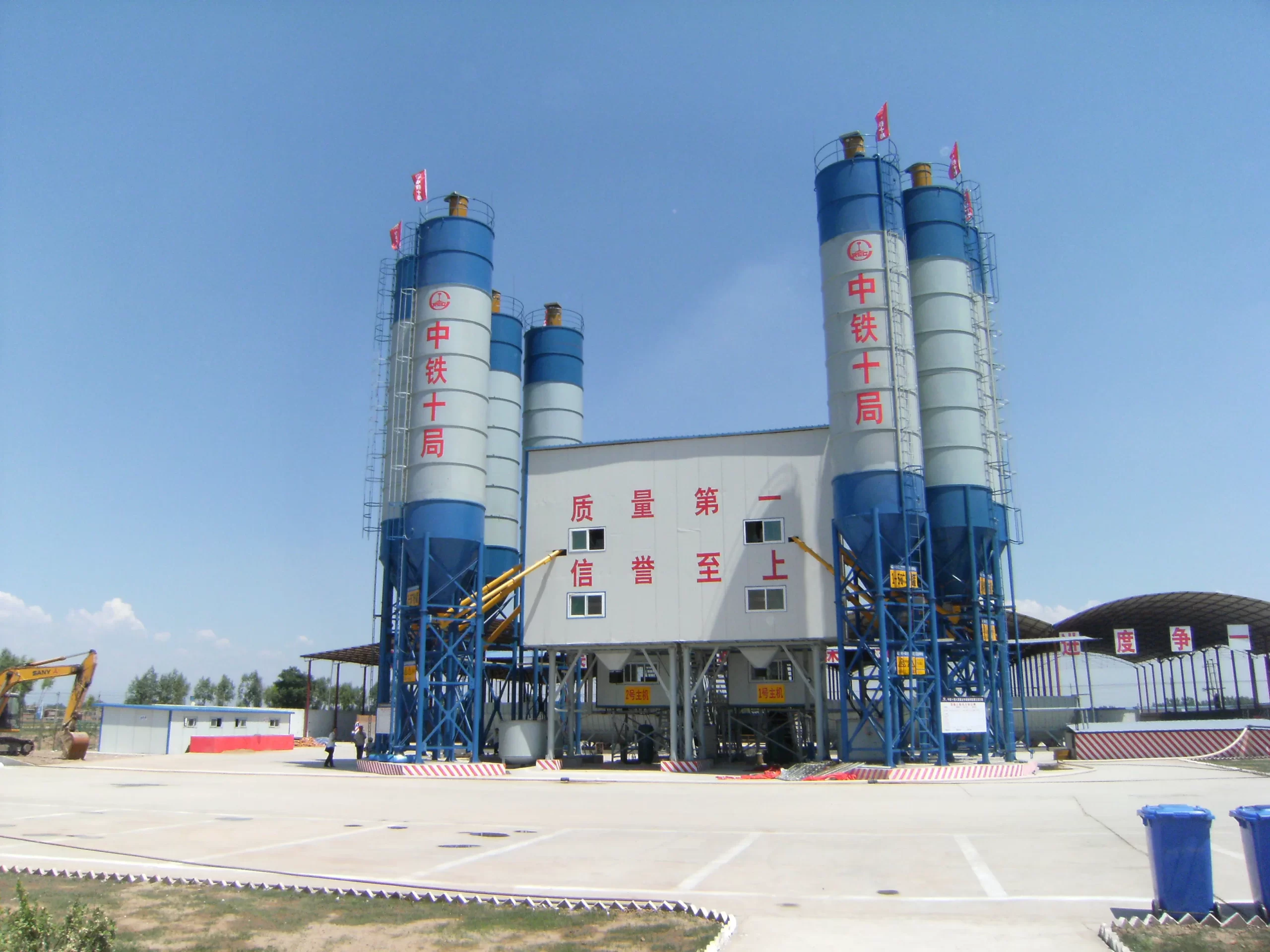

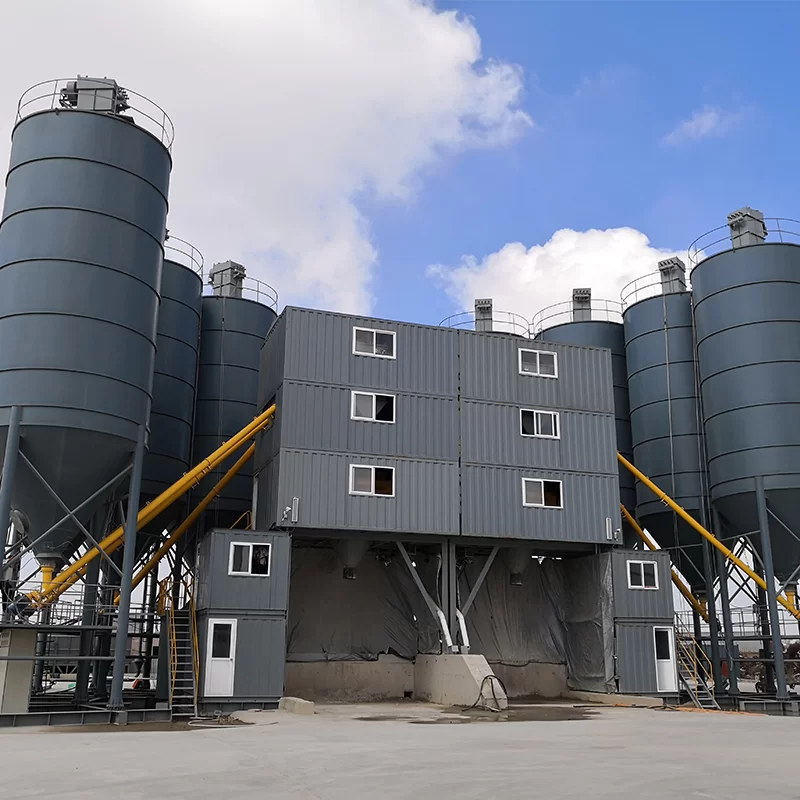

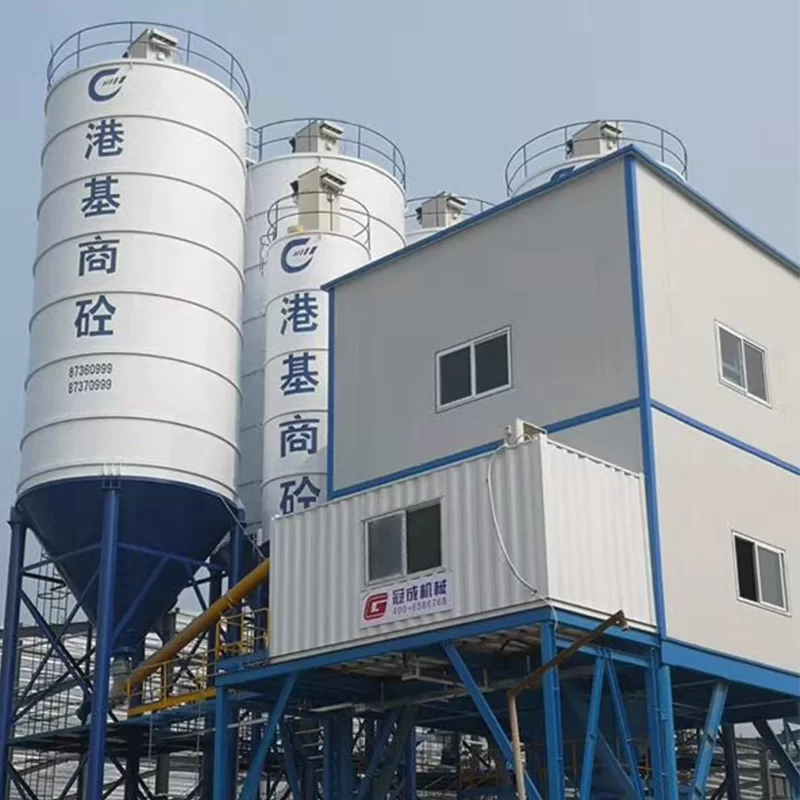

The standard concrete mixing plant (belt conveyor feeding) of Shandong Guancheng Machinery Technology Co., Ltd.

Product Information

Technical Parameter

Main Technical Parameters of Standard Concrete Mixing Plant
Specification	Unit	HZS60	HZS90	HZS120	HZS180	HZS240	HZS270
Mixer Feeding Capacity	L	1600	2250	3200	4800	6000	6750
Mixer Discharge Capacity	L	1000	1500	2000	3000	4000	4500
Aggregate Measuring Precision	%	±2	±2	±2	±2	±2	±2
Water Measuring Precision	%	±1	±1	±1	±1	±1	±1
Cement Measuring Precision	%	±1	±1	±1	±1	±1	±1
Fly Ash Measuring Precision	%	±1	±1	±1	±1	±1	±1
Additive Measuring Precision	%	±1	±1	±1	±1	±1	±1
Aggregate Silo Capacity	m³	3×8	4×12	4×16	4×20	4×25	4×25
Mixing Power	kW	2×18.5	2×30	2×37	2×55	2×75	2×75
Total Machine Power	kW	100	130	200	270	360	360

The standard concrete mixing plant (belt conveyor feeding) of Shandong Guancheng Machinery Technology Co., Ltd. is a high-efficiency and intelligent concrete production equipment specially designed for large and medium-sized construction projects, municipal engineering, roads and bridges, commercial concrete mixing stations and other scenarios. Relying on the company's mature mechanical manufacturing technology, it takes "high efficiency and continuity, stability and reliability, precision and energy saving" as its core positioning, adopts a professional belt conveyor feeding design, abandons the limitations of traditional feeding methods, comprehensively improves production efficiency and product quality, provides one-stop and high-quality concrete production solutions for various large and medium-sized engineering projects, and demonstrates the craftsmanship and manufacturing strength of Guancheng Machinery.

Core Product Advantages

1. Exclusive Advantages of Belt Conveyor Feeding: High Efficiency, Continuity and Durability

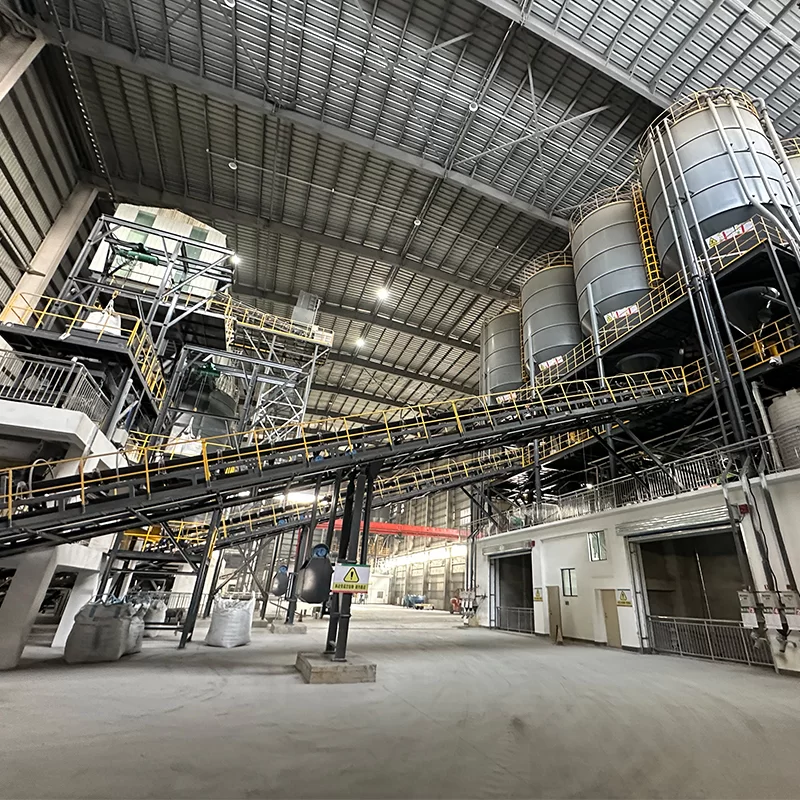

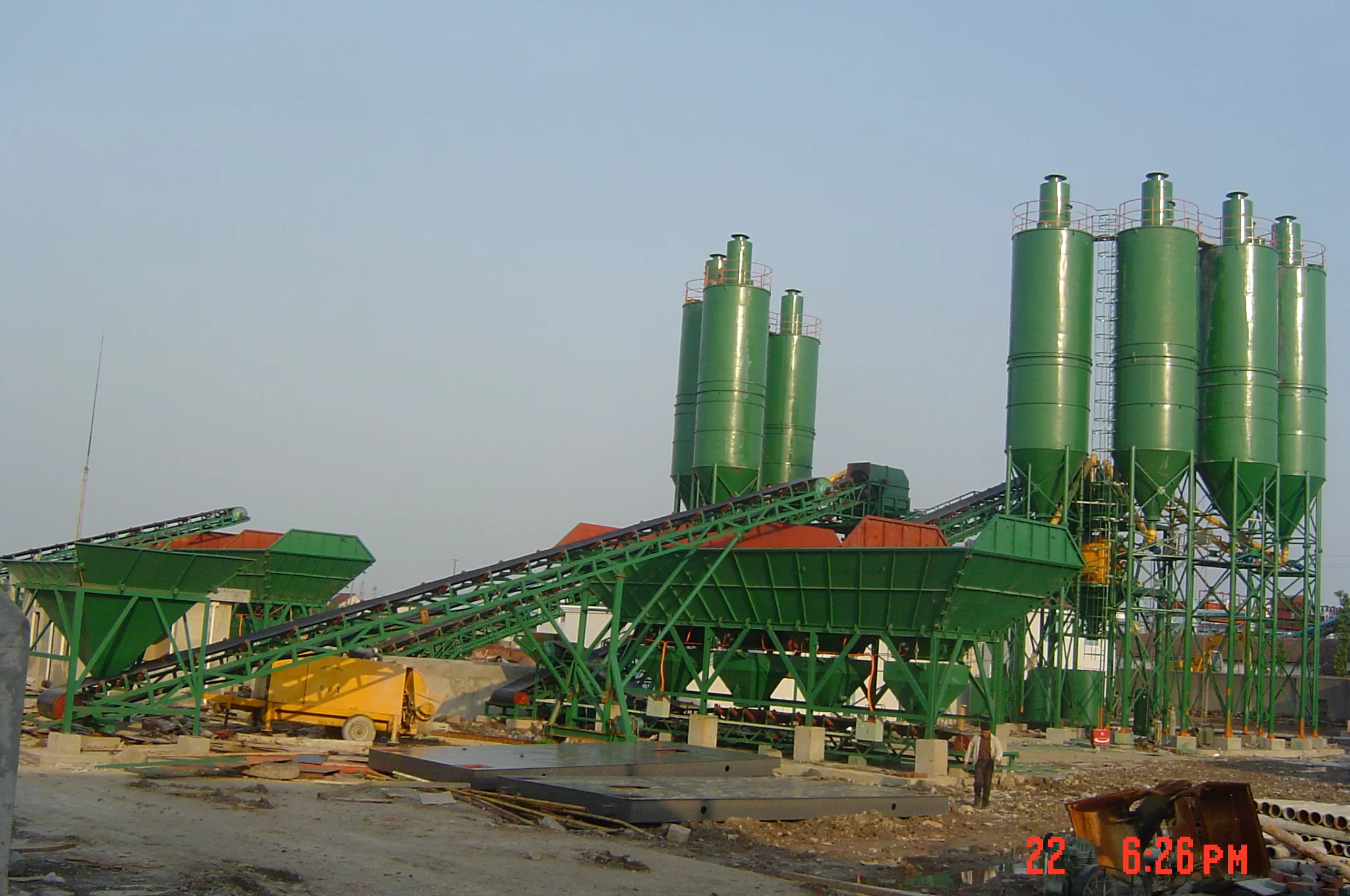

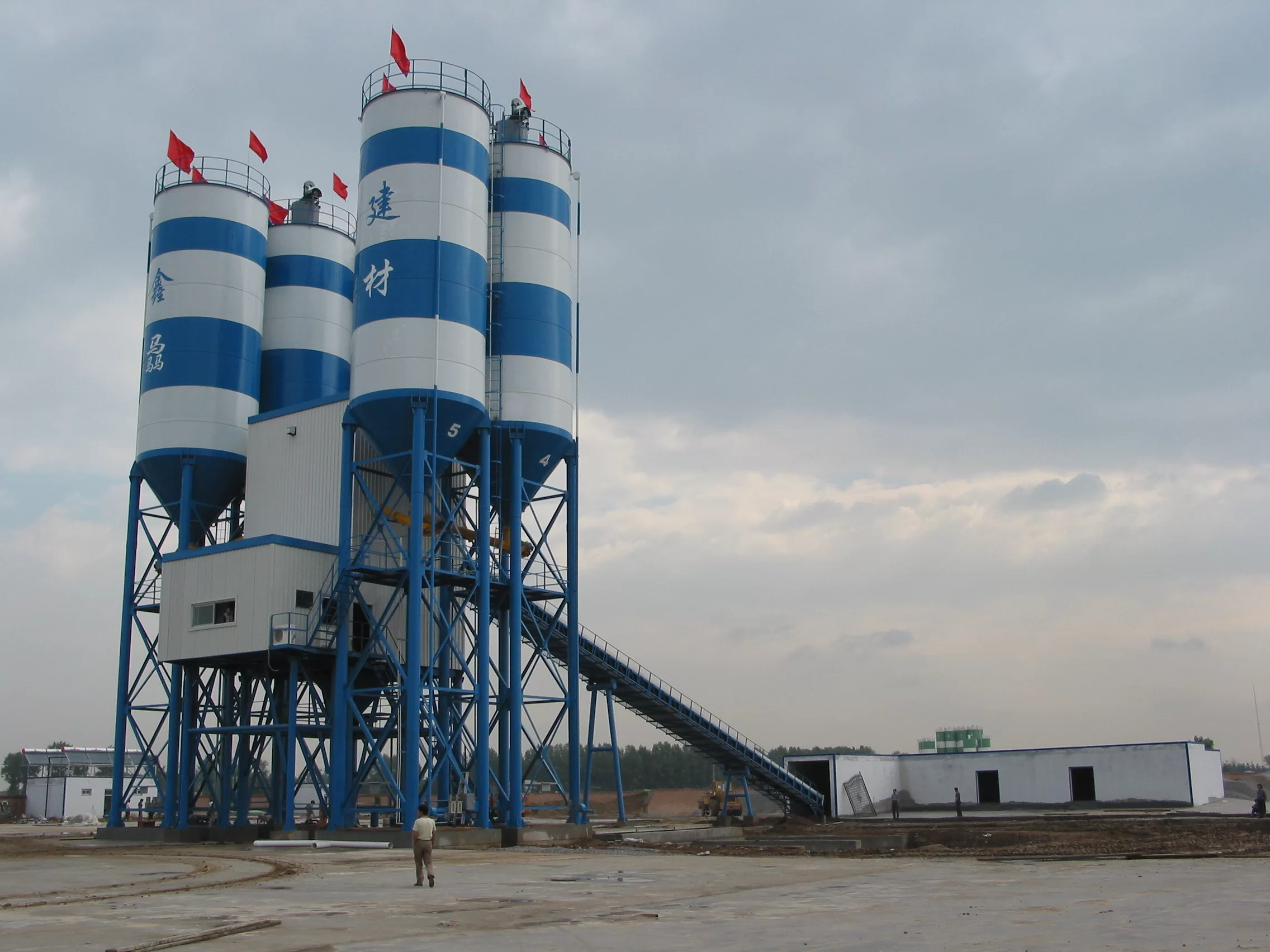

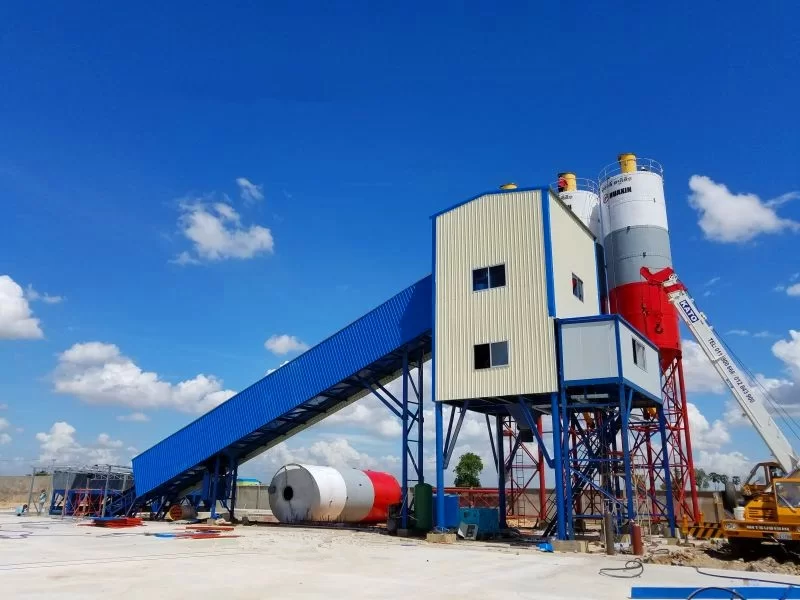

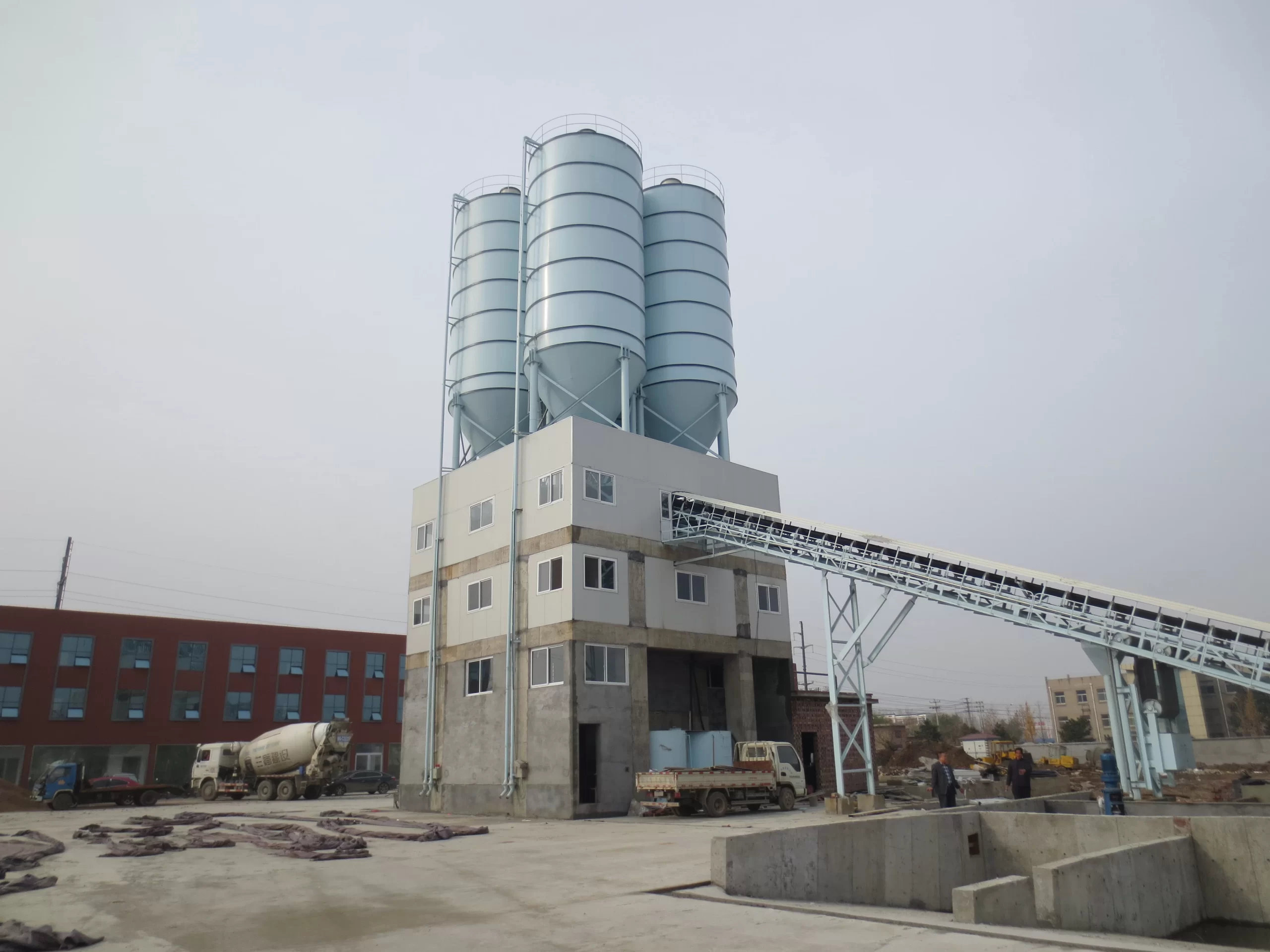

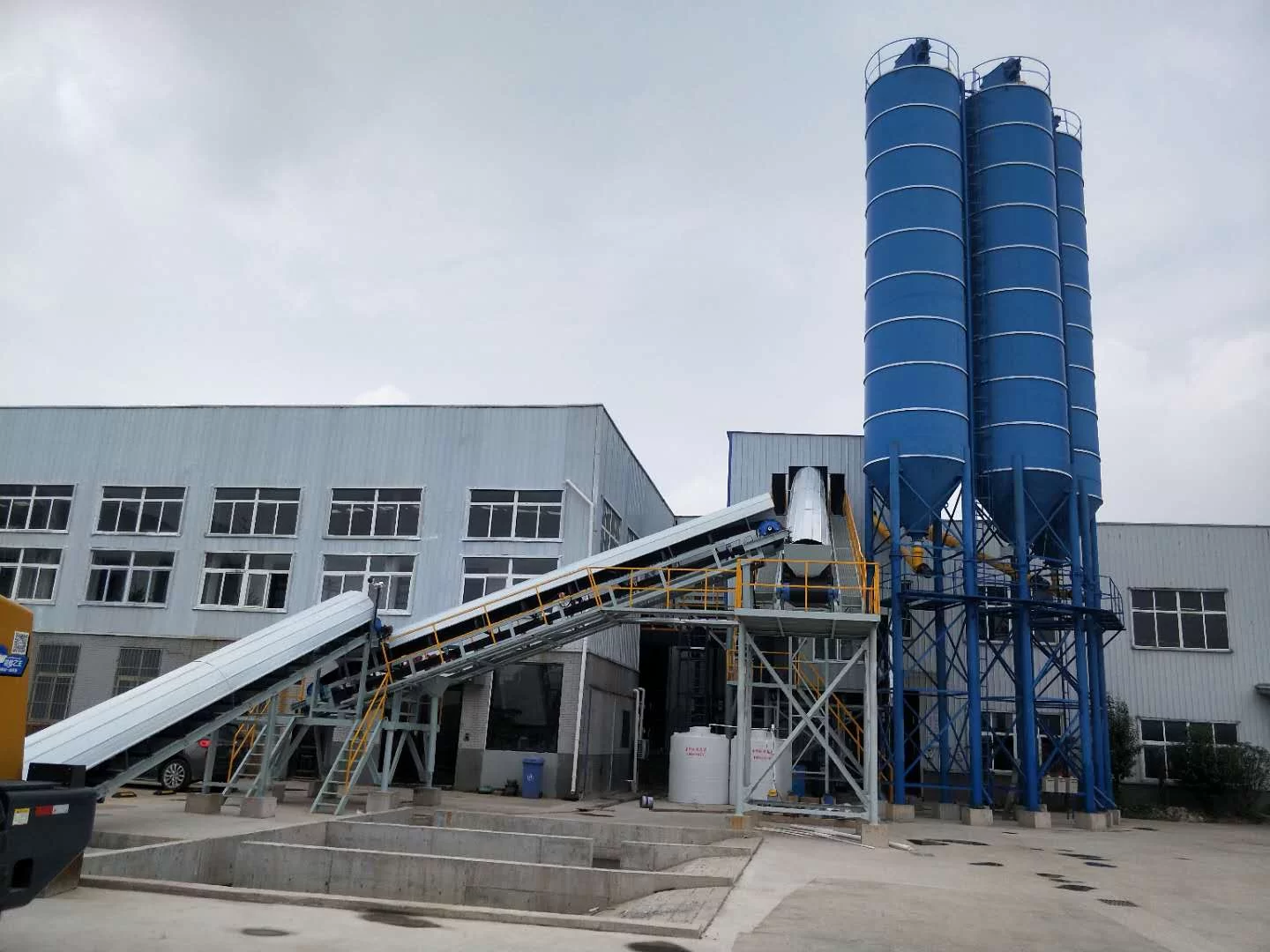

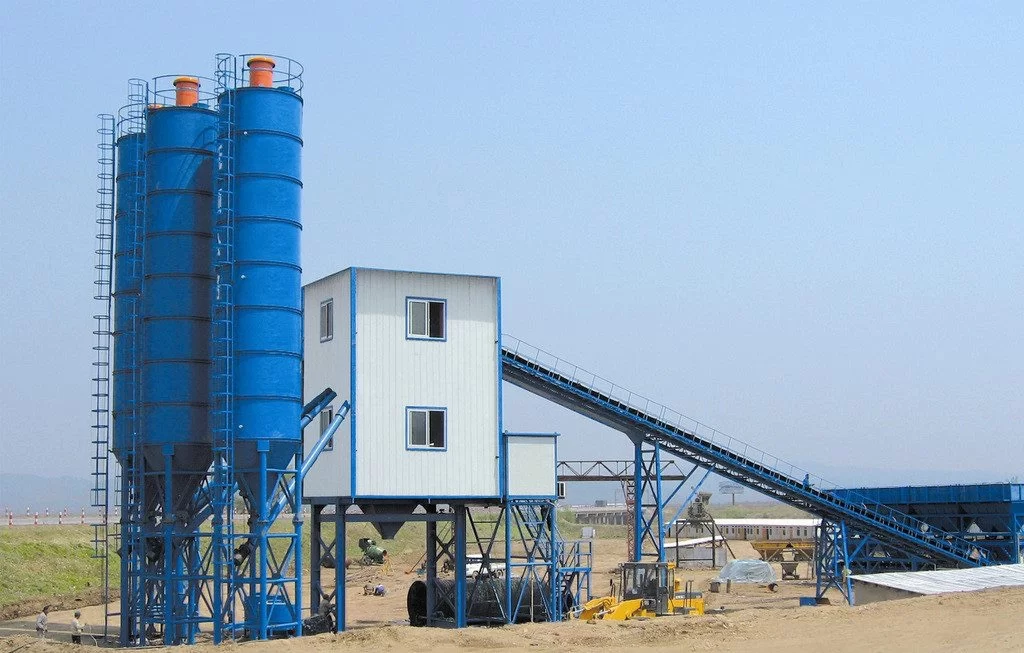

Adopting a customized heavy-duty belt conveyor feeding system, different from simple feeding methods, it can realize large-capacity and continuous feeding, completely solve the production stuck problem caused by intermittent feeding, and greatly improve the overall production efficiency. The belt conveyor adopts a high-wear-resistant and tear-resistant conveyor belt, whose surface is anti-slip and anti-corrosion treated, suitable for the transportation of various raw materials such as sand, gravel and aggregates. It has small wear and long service life, no need for frequent replacement in daily use, effectively reducing operation and maintenance costs; equipped with a precision speed-regulating motor, it can flexibly adjust the feeding speed according to the production rhythm of the mixing host, realize seamless connection between feeding and mixing, avoid raw material accumulation or insufficient supply. The hourly output is stably maintained at 60-240m³/h, perfectly matching the large-volume concrete supply needs of large and medium-sized projects.

The belt conveyor adopts a sealed design, equipped with a dust cover and a guide chute, which can effectively prevent dust leakage and raw material spillage during transportation, not only meeting the requirements of environmental protection production, but also reducing raw material waste; the machine body is reinforced and anti-shock treated, running stably without noise, suitable for long-term continuous operation scenarios, with low failure rate, which can ensure the all-weather stable operation of the equipment, reduce the loss of downtime and work delay, and ensure that the construction progress is not affected.

2. Precise Measurement + Efficient Mixing, Excellent Concrete Quality

Equipped with Guancheng's exclusive high-precision measurement system, adopting a hierarchical measurement design, powders (cement, fly ash, etc.), aggregates, water and admixtures are independently and accurately weighed respectively. The measurement accuracy strictly complies with relevant national standards, among which the aggregate measurement accuracy is ±2%, and the measurement accuracy of water, powders and admixtures is ±1%. Equipped with an intelligent measurement compensation system and an automatic sand and gravel moisture content detection device, it can real-time calibrate measurement errors and automatically compensate for moisture loss, effectively avoiding raw material waste, ensuring that the ratio of each batch of concrete is accurate, the strength is uniform, and the performance is stable. It can easily meet the production needs of C30-C60 concrete of various grades, suitable for high-grade projects, precision component production and other scenarios with high quality requirements.

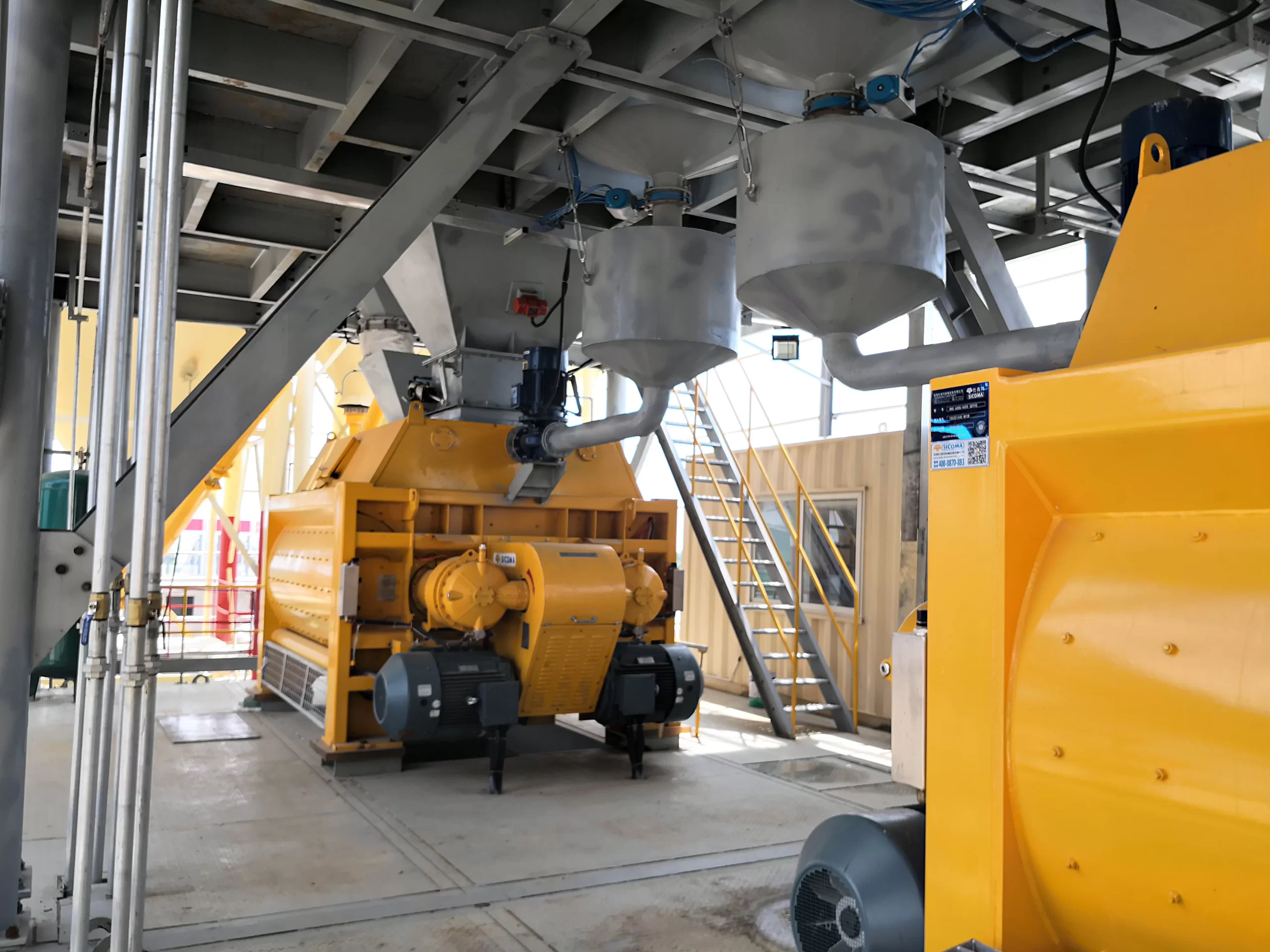

Configured with a high-efficiency forced double horizontal shaft mixing host, the mixing blades and lining plates are made of high-chromium alloy wear-resistant materials, processed by special heat treatment technology, with high hardness and strong wear resistance, and the service life is extended by more than 30% compared with ordinary materials; the mixing chamber is optimally designed, with no dead corners in mixing, and the mixing blades rotate at a uniform speed, which can quickly realize the full mixing of raw materials without damaging the aggregate gradation. The mixed concrete has high compactness and good workability, no need for secondary mixing, further improving production efficiency and product quality.

3. Intelligent Control + Convenient Operation and Maintenance, Reducing Labor Costs

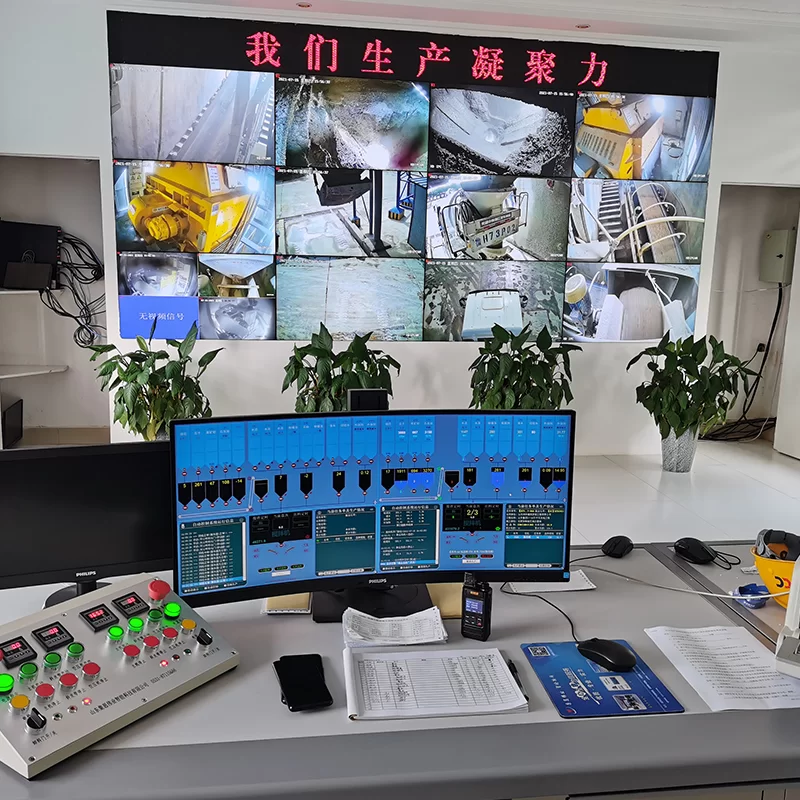

Equipped with a PLC intelligent control system, equipped with a high-definition touch operation interface, the interface is simple and intuitive, and the operation is convenient, supporting manual and automatic dual-mode switching, which can realize full-process automatic control of feeding, measurement, mixing and discharging. No complex operation is required, ordinary workers can get started after simple training, and one person can complete the daily monitoring and operation of the equipment, greatly reducing the labor threshold and labor costs, and solving the pain point of labor shortage in large and medium-sized mixing stations.

The control system has a built-in intelligent fault diagnosis function, which can real-time monitor the operation status of the equipment. When problems such as belt deviation, measurement error, motor failure occur, it will automatically alarm and display the fault location and cause, facilitating staff to quickly troubleshoot and handle in time, reducing equipment downtime; at the same time, it supports data storage and query functions, which can record the production parameters and ratio information of each batch of concrete, facilitating project traceability and quality control. The key parts of the equipment are designed for easy maintenance, with reserved maintenance channels and maintenance ports. Daily maintenance only requires simple cleaning, lubrication and fastening, no need for a professional maintenance team, and the long-term operation and maintenance costs are greatly reduced.

4. Environmental Protection and Energy Saving + Stability and Reliability, Suitable for Long-Term Operation

Practicing the concept of green production, the equipment is fully equipped with complete environmental protection devices. In addition to the sealed dust-proof design of the belt conveyor, it is also equipped with a pulse dust collector and a sewage recycling system, which can effectively treat the dust and sewage generated during production. The dust emission meets national environmental protection standards, and the sewage can be recycled after treatment, which is both environmental protection and energy saving, helping users achieve green and compliant production and avoid environmental protection penalties.

The whole equipment adopts a modular integrated design, and the core components are all selected from high-quality brand products in the industry, which have passed strict quality inspection, with strong stability and low failure rate. It can adapt to harsh construction environments, support 24-hour continuous operation, and meet the construction period requirements of large and medium-sized engineering projects. The machine body is welded with steel structure,经过 derusting and anti-corrosion treatment, wind-resistant, rain-proof and corrosion-resistant, can be used outdoors for a long time, the service life can reach more than 10 years, the equipment has a high retention rate, and the long-term investment is more cost-effective.

5. Customizable Adaptation + Perfect After-Sales Service, Full-Scale Escort

The product has a high degree of serialization, covering various models such as HZS60, HZS90 and HZS120、HZS180、HZS240. According to the user's actual production needs, site size and concrete grade requirements, it can flexibly customize the belt conveyor length, powder silo capacity, discharge height and other configurations, adapt to the receiving needs of different tank trucks and site conditions, realize "one machine adapts to multiple scenarios", and maximize the satisfaction of users' personalized production needs.

Shandong Guancheng Machinery Technology Co., Ltd. provides a complete after-sales service system, equipped with a professional after-sales team, providing free on-site installation, commissioning and technical training services to help users quickly familiarize themselves with equipment operation and maintenance skills; providing 3-year free warranty service, free replacement of damaged core components during the warranty period, and lifelong maintenance and spare parts supply services after the warranty period. The spare parts inventory is sufficient and can be delivered quickly, ensuring the long-term stable operation of the equipment, fully escorting the user's production, and making users buy at ease and use at ease.

Core Product Positioning

With "high efficiency and intelligence, stability and reliability, green energy saving" as the core, focusing on large and medium-sized concrete production scenarios, Shandong Guancheng Machinery Technology Co., Ltd. relies on mature manufacturing technology and strict quality control to create a standardized and high-quality belt conveyor feeding concrete mixing plant. It provides efficient, worry-free and compliant concrete production equipment for users such as commercial concrete mixing stations, municipal engineering, roads and bridges, and large construction sites, helping users reduce costs and increase efficiency, improve core competitiveness, and demonstrate Guancheng Machinery's business philosophy of "Craftsmanship Makes Equipment, Integrity Wins Customers.
