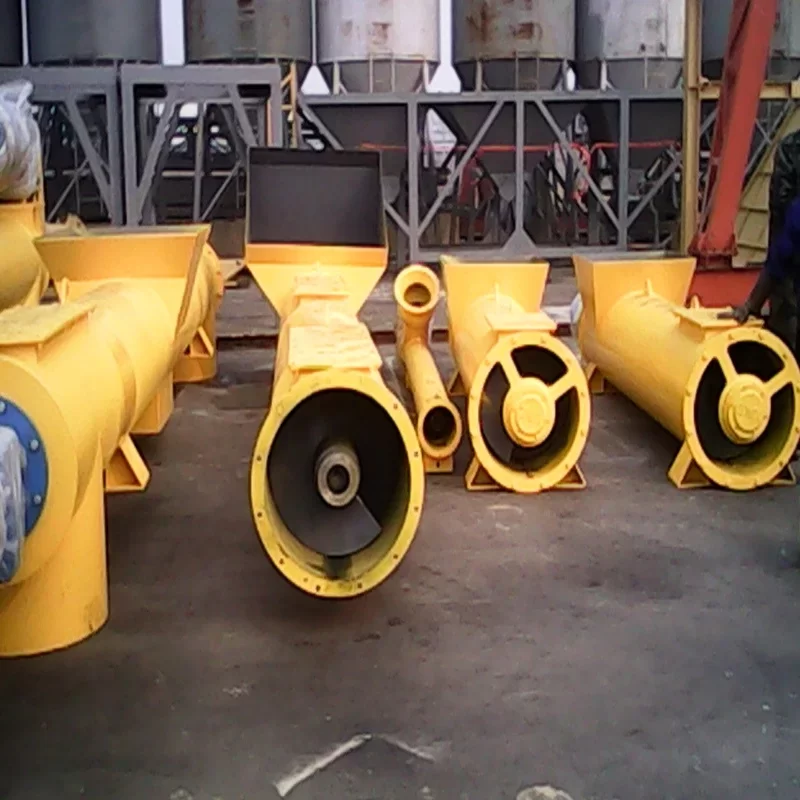

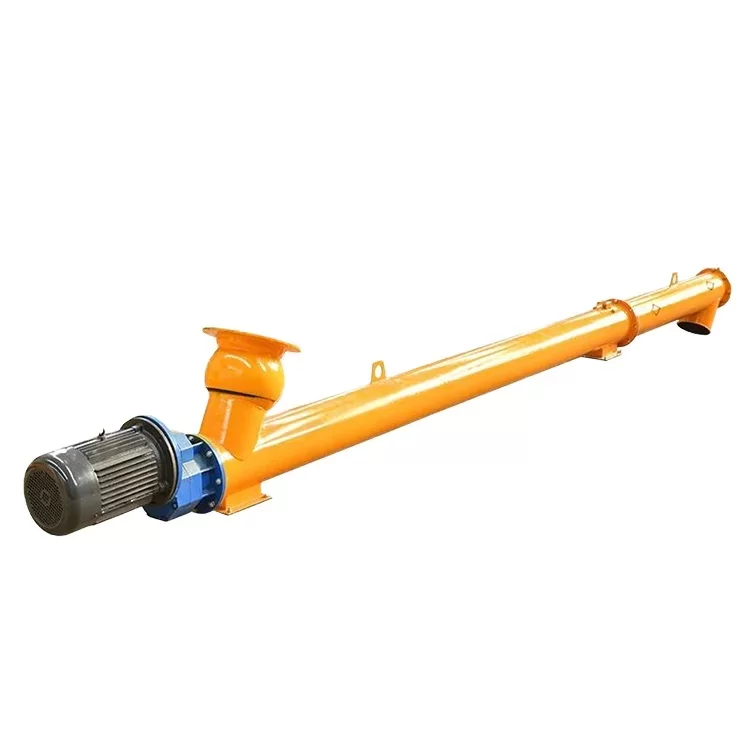

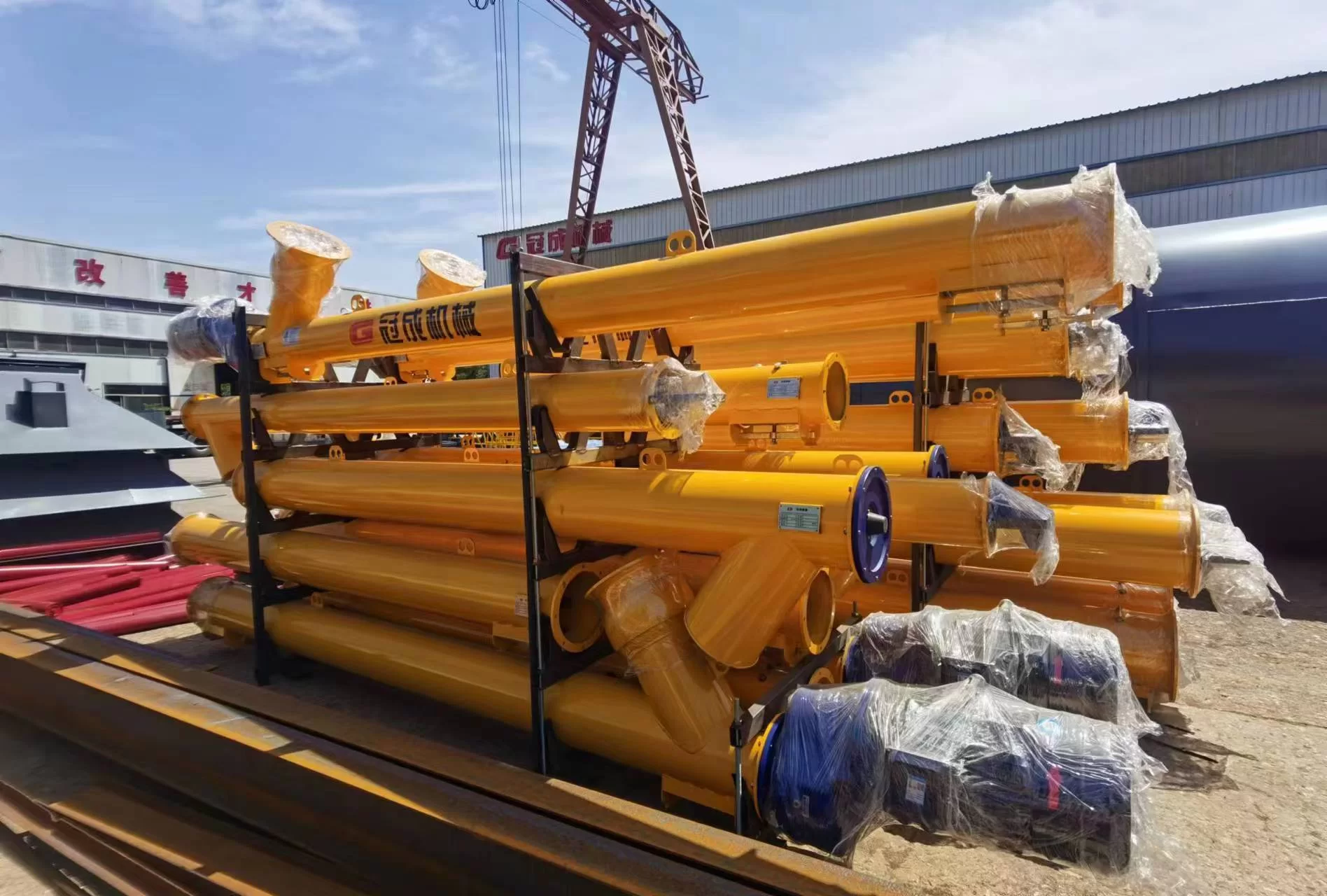

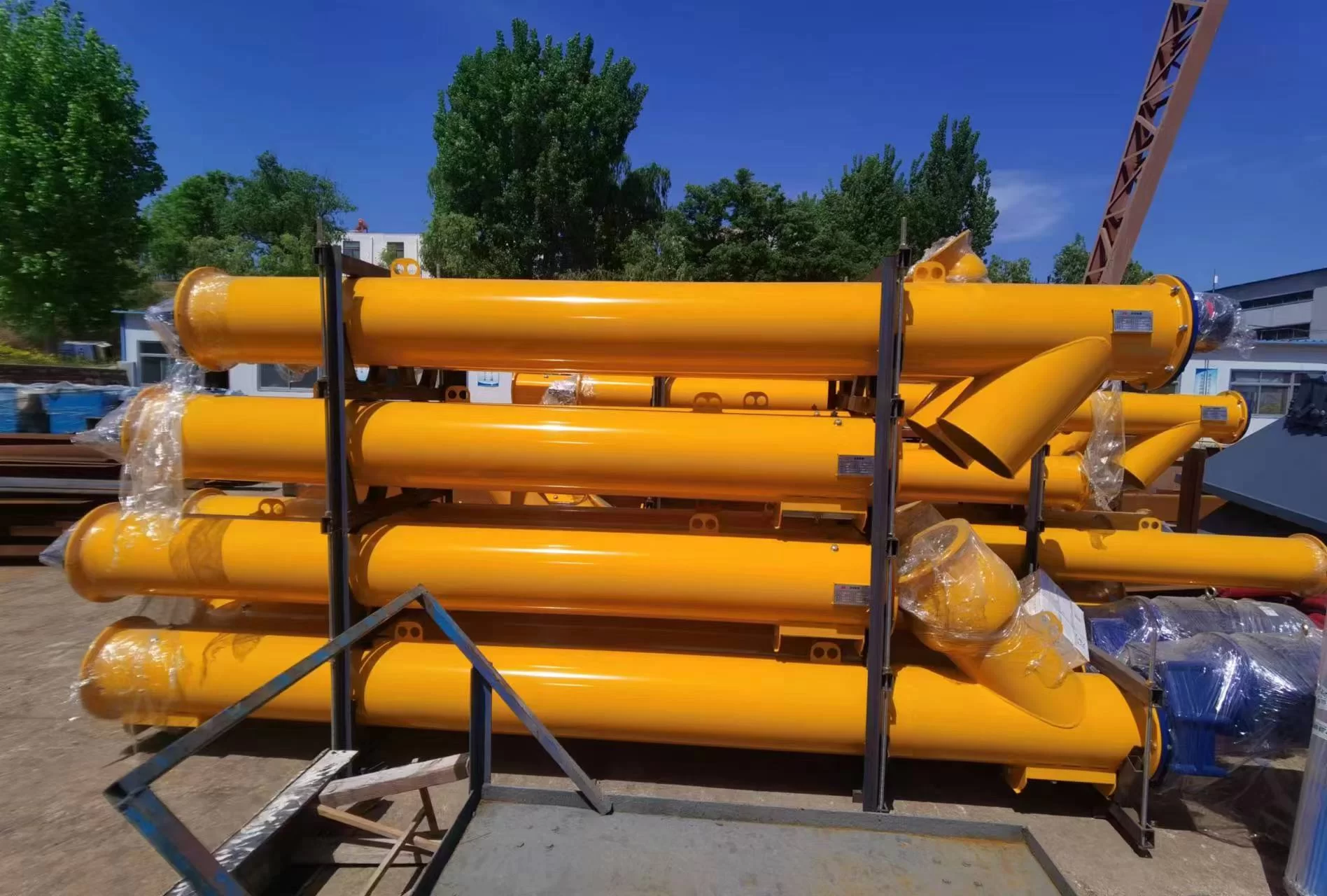

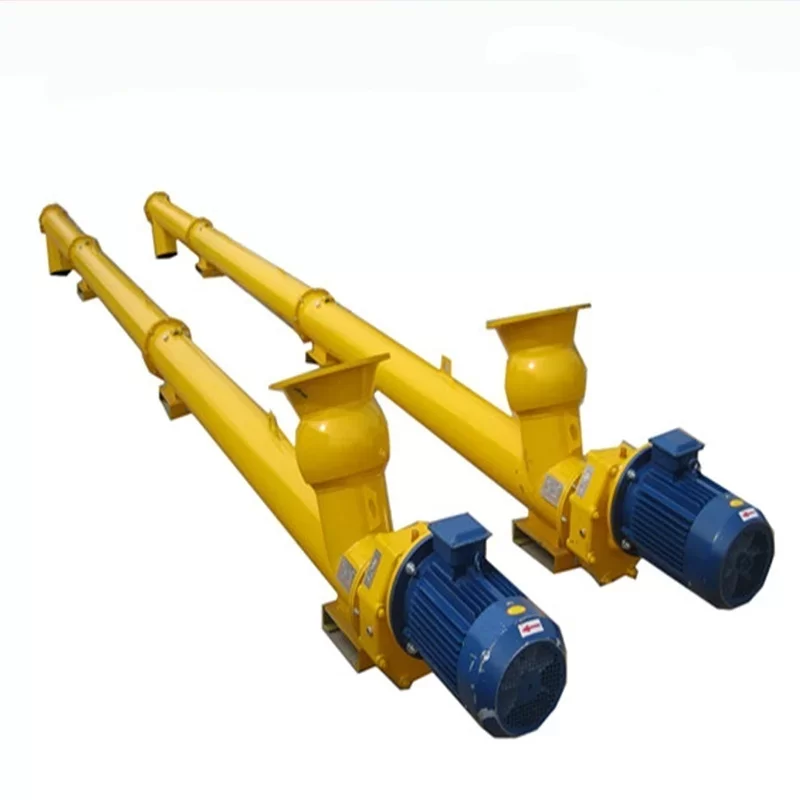

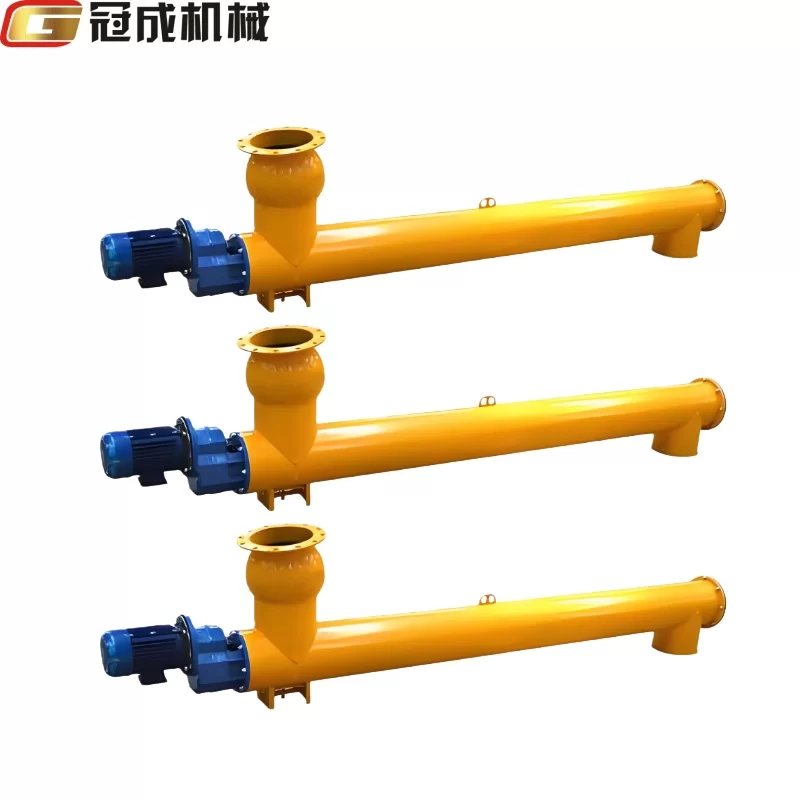

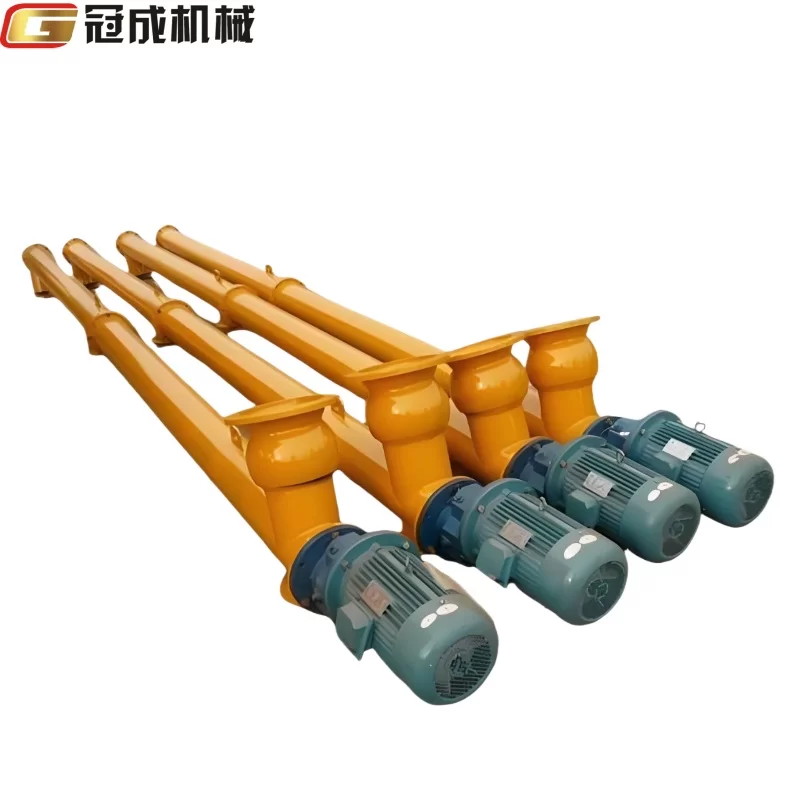

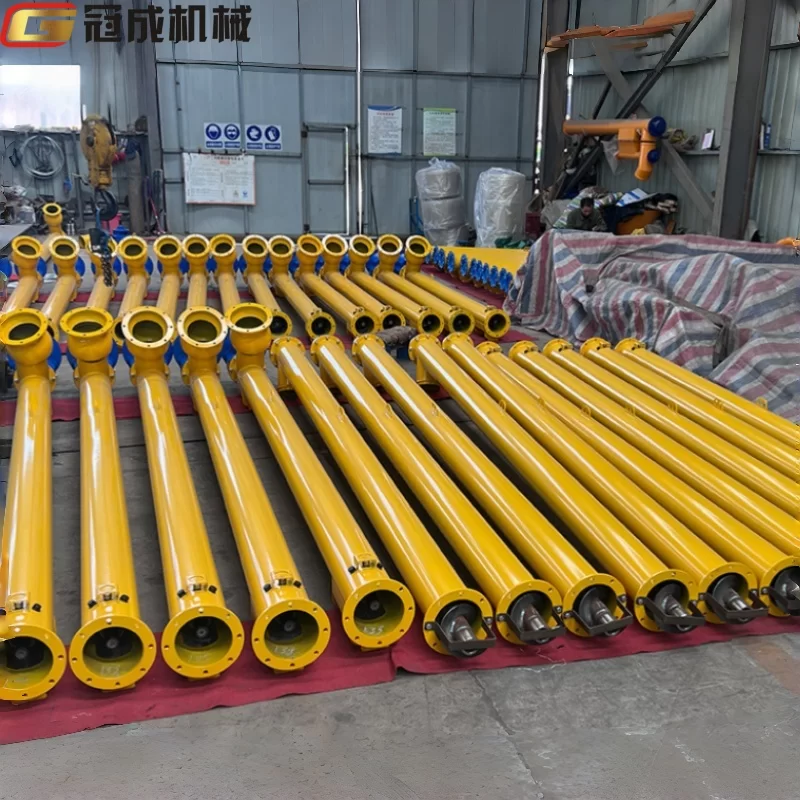

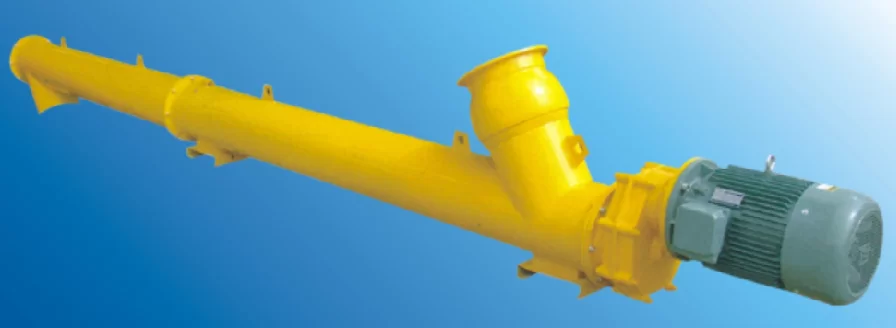

Screw Conveyor

Name: Screw Conveyor
Availability: InStock
Rating: 4.5 (89 reviews)

The screw conveyor is an efficient continuous conveying equipment, suitable for horizontal, inclined or vertical transportation of granular, powdery, small lumpy and other materials. It is widely used in building materials, chemical industry, grain, mining, environmental protection and other industries, with significant advantages such as stable conveying, flexible installation and convenient maintenance.

Product Information

Product Parameter Table

Technical Parameters of Screw Conveyor
Item	Unit	Standard Model 1	Standard Model 2	Standard Model 3
Model	—	Screw-100	Screw-150	Screw-200
Conveying Capacity	m³/h	10–15	20–30	40–60
Screw Diameter	mm	100	150	200
Rotating Speed	r/min	60–90	50–80	40–70
Motor Power	kW	1.5–3.0	3.0–5.5	5.5–11.0
Conveying Length	m	2–8	3–12	5–15
Applicable Inclination	°	0–30	0–35	0–40
Total Weight	kg	180–250	350–500	600–850

Core Advantages

1. High-Efficiency Conveying

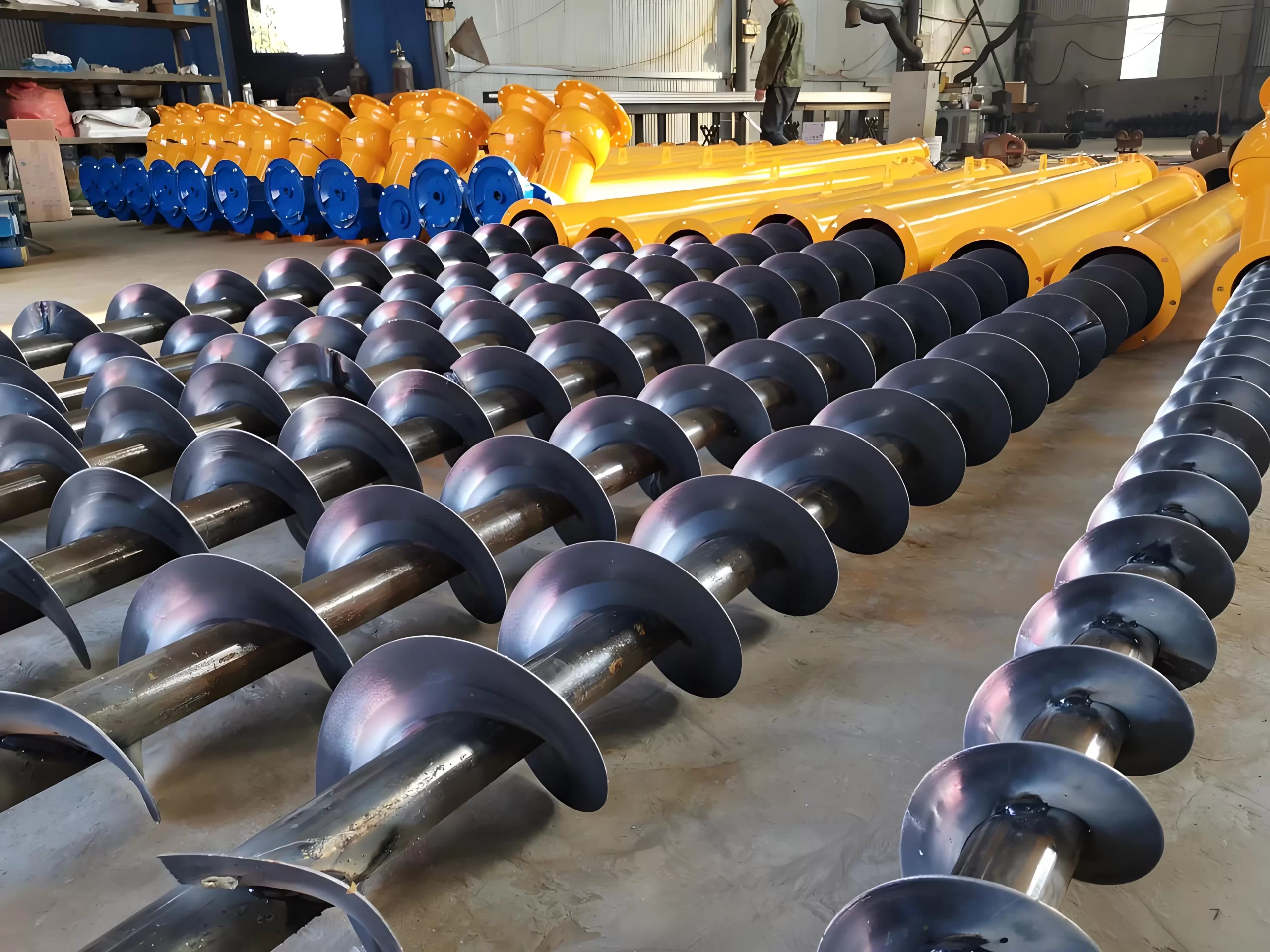

Small diameter, high rotating speed and large conveying capacity; equipped with variable-pitch spiral body and low-resistance intermediate bearing body design, ensuring smooth, uniform and rapid feeding of materials during production and greatly improving production efficiency.

2. Flexible Arrangement

The whole machine has strong rigidity. Whether it is horizontal conveying or large-inclination conveying, it can be directly connected with supporting equipment without separate foundation. It occupies small space and is convenient for movement and disassembly.

3. Excellent Lubrication

Adopts oil-saving lubrication sliding bearing with multi-layer labyrinth oil seal design, combined with centralized lubrication system composed of oil pump, distributor and pipeline. It is easy to operate and can ensure sufficient lubrication of all moving parts of the whole machine, extending the service life of the equipment.

4. Reliable Sealing

The dust cover of the reducer has reliable sealing and no leakage, which not only ensures a clean working environment but also effectively protects the core components of the reducer; the improved sight glass device completely solves the problems of water seepage and material leakage.

5. Diversified Connection

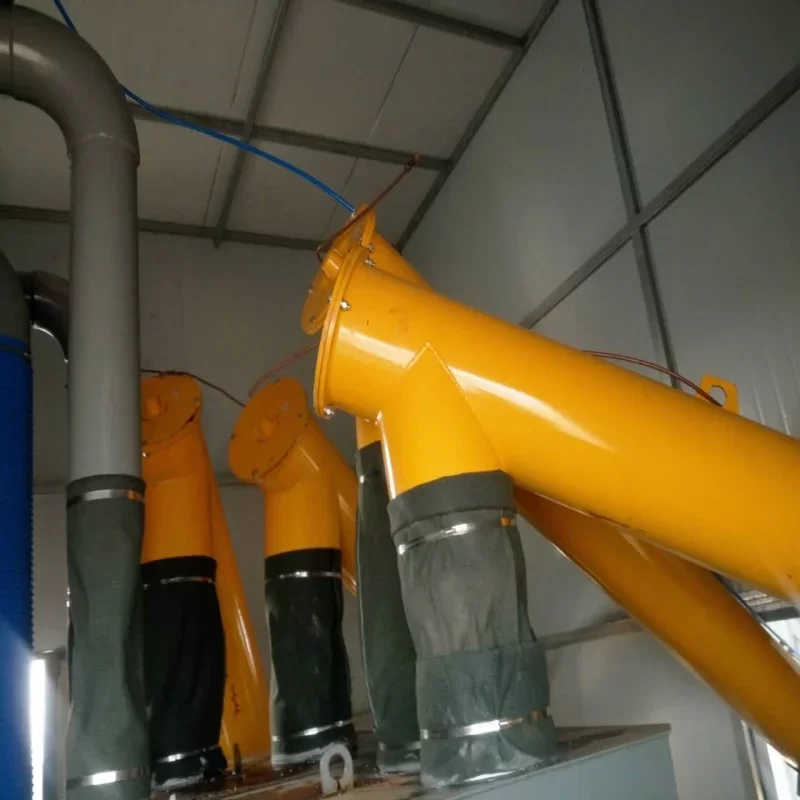

The feed inlet and discharge outlet can adopt various connection methods such as universal ball, cloth bag and flange, and can also be combined with butterfly valve and gate valve to meet the needs of different working conditions.

6. Innovative Design

The special reducer designed and produced by introducing advanced technology has the remarkable advantages of small volume, large bearing torque, low noise and no oil leakage, as well as stable quality, reliable performance and long service life.
